High Quality Best Price Plug Plastic Injection Molding Machine

Product Description

Detailed Images

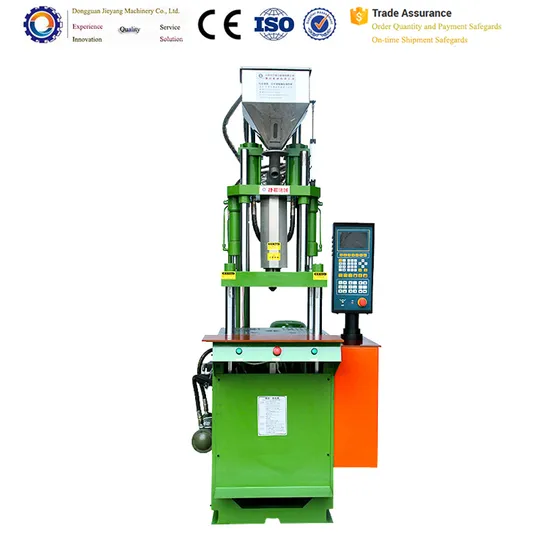

High Quality Best Price plug plastic injection molding machine
Product Description

	MODEL	UNIT	JY-350ST
Injection Unit	Screw Diameter	mm	30	32	34
	Injection Pressure	kg/cm2	1171	996	820
	Max.Shot Weight(PS)	g	74	84	106
	Injection Rate	mm	115
Clamping Unit	Clamping Force	Tons	45
	Plate Size	mm	580x430
	Distance Between Tie Bere	mm	410x250
	Min.Mold Height	mm	220/70
	Opening Stroke	mm	200
	Enjection Force	Tons	1.76
	Enjection Stroke	mm	35
Power Unit	Max.Hydaulic Pressure	kg/cm2	140
	Pump Motor Power	KW/HP	5.5/7.5HP
	Total Weight	KW	9
Other	Machine Weight	Tons	2.4
	Machine Dimensions(LxWxH)	m	1.7x1.2x3.0
	Shipping Weight	Tons	2.7
	Shipping Measurements(LxWxH)	m	1.92x1.3x2.3

Maybe you want to know more:
1.Multi-color products : just need the same quantity molds as color but one machine.
2.Matrial: PVC,TPE,PE,PP,ABS,POM,PS,LCP,PBT,GF...
3.Hydraulic oil: No.68 or 46
4.Computer memory: controller can remember 99 sets of mold data.
Services Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company
Established in 2005 ,located in Xincheng Industrial Zone of Hengli Town with a planted area of 5000 square meters ,Dongguan JieYang Machinery Co.,ltd are specialized in manufacturing the vertical injection molding machines more than 20 years with 100 professional engineers .
Certification
Packing&Delivery
Packaging Packing size :1.6x1.0x2.23m
Packing way:Normally,plastic film wrap on the machine & plywood case pack outside.
The machine also can be packaged according to your requirement.
Delivery
Normally ,30 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Delivery way:Normally,by sea ,air ,train and others.

contact us
Ency
Phone:+86 13538774546



Please send the message about your requirements as below to customized your machine ,let's get effective communication now.:-)
1)Pictures of your products .
2)Weight of product as well as the material.
3)Mold dimension if you have in hand.
Thanks for your first step help.:-)
