Precision Parts Mechanical Seal Double-Sided Grinding and Polishing Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, wafer substrate, ceramics, glass, industrial sapphire, plastics, and any other composites.
Products
Working principle and characteristics:
1, innovation is the basic concept of the design, the equipment in the design carefully analyzed and compared the structure of similar equipment at home and abroad, control and functional characteristics, comprehensive, concluded and adopted the successful experience of many users and reasonable suggestions. Efforts are made to improve the technical content, operation accuracy and operation stability of the equipment.
2, the use of advanced Siemens PLC program controller, control the action of the machine, high degree of automation, and matched by Siemens Smart 700 large screen touch screen interface, display the current state of the machine, man-machine dialogue, operation at a glance.
3, the use of frequency control and full gear drive, so that the whole machine work when starting stable, stable operation, especially at low speed operation, to overcome the upper and lower grinding disk movement, crawling phenomenon.
4. The pneumatic actuator produced by Yadeke and the pneumatic control component produced by SMC are used to realize the stepless pressure regulation of the grinding disc in four stages, namely light pressure, medium pressure, heavy pressure and fine, so as to provide more excellent grinding efficiency and wider grinding process selection for the grinding workpiece.
5, the big gear ring can be lifted, and the lifting position can be adjusted. The height of the sun wheel can also be adjusted by periodically increasing or decreasing the number of shims.
6, reducer with Hangzhou Jie brand.
7, double motor and double frequency conversion drive; Wuxi Hengda high temperature variable frequency motor. The main motor (9KW/1440rpm) drives the upper and lower grinding disks and gear rings; Use the auxiliary motor (1.5KW/1440rpm) to drive the sun wheel. The secondary motor and the main motor are proportionally synchronized in speed regulation.
8, equipped with automatic lubrication equipment to lubricate the gear.
9, This equipment can set and store 30 sets of different process parameters (pressure, speed, time, turn number) for users to choose.
10, equipped with the main cylinder end lock mechanism, can be convenient and safe to lock the upper grinding disc.

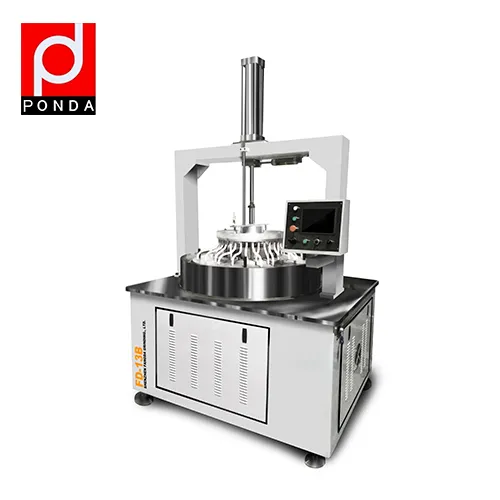

Equipment diagram
SPECIFICATION

Standard Specification
Machine Model	FD6B		FD9B		FD13-6B
Lower Plate Diameter	Φ386 mm / 15 inches		Φ640 mm / 25 inches		Φ973 mm / 38 inches
Upper Plate Diameter	Φ386 mm / 15 inches		Φ640 mm / 25 inches		Φ973 mm / 38 inches
Star Wheel Parameter	DP 12, Z=66, A=20°		DP 12, Z=108, A=20°		DP 19.3, Z=152, A=20°
Conditioning Ring Parameter	DP 12, Z=66, A=20°		DP 12, Z=108, A=20°		DP 19.3, Z=152, A=20°
Max. Workpiece Diameter	Φ120 mm		Φ180 mm		Φ290 mm
Process Thickness	0.2mm≤N≤20mm		0.2mm≤N≤25mm		0.2mm≤N≤30mm
Number of Station	3≤N≤5		3≤N≤5		3≤N≤5
Plate Rotate Speed	0-60 rpm		0-60 rpm		0-50 rpm
Total Weight	600 kg		2000 kg		3200 kg
Total Floor Space	700×950 mm		1350x960 mm		1700×1380 mm
Built-In Optional Kits
Grade		Standard		Advanced
Slurry Supply System		-		Integrated with PLC
Facing and Grooving System		-		Integrated with PLC
Machine Enclosure		-		Framed by Metal Plate
*NOTE: the optional kits based on the production requirements, making samples can confirm if they are necessary.
