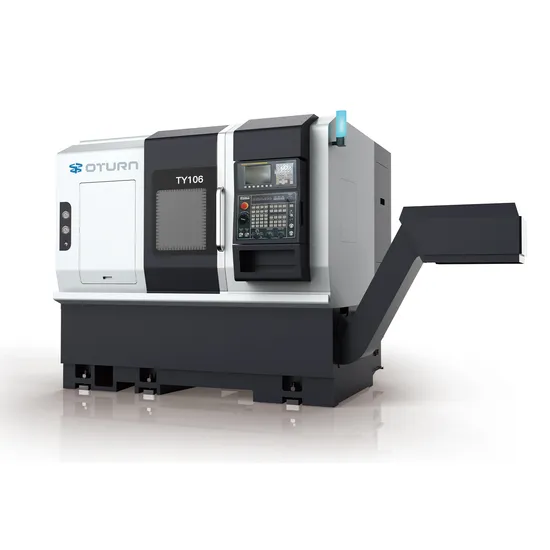

Oturncnc Metal Turning Machine Machine Ty106 Slant Bed CNC Turning Lathe Optional 3 Axis Type Turning Lathe

Product Description

Product Description
The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting.
stability. High-strength HT300 cast iron one-piece solid structure lathe, using finite element analysis, the overall machine
It has excellent rigidity and stability, and can maintain long-term reliable accuracy, improve processing stability and tool life, and eliminate stress.
In addition to improving precision and stability, the high-strength roller linear rail design structure and the transmission system adopts screw pre-tension design to improve
Reflecting rigid performance, the simple and elegant appearance is in line with the trend.
Main features of this machine tool:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. Adopt direct drive synchronous spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
3. High rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
4. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to ensure thermal stability. The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
5. Programmable hydraulic tailstock and high rigidity integral tailstock can eliminate vibration and have good stability. Programmable or manual button control, convenient, fast and reliable.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Name	Unit	TY106
Maximum turning diameter on the bed	mm	Φ600
Maximum processing diameter	mm	360
Maximum processing diameter on the tool holder	mm	Φ200
Maximum processing length	mm	360
Distance between centers	mm	450
Spindle nose	type	A2-5
Maximum speed of spindle	rpm	5500
Oil cylinde/Chuck	lnch	6″
Spindle bore diameter	mm	Φ56
Bar diameter	mm	Φ45
Direct drive spindle motor power	kw	11
Spindle motor torque	Nm	61-125
X axis maximum travel	mm	200
X/Z axis linear guidel specification	spes	35/35 roller
Z axis maximum travel	mm	380
X/Z axis motor power	kw	2.4
X/Z axis fast move	m/min	30
X/Z positioning accuracy	mm	±0.005
X/Z repeat positioning accuracy	mm	±0.003
Servo turret type	pcs	12T
Square tool holder specification	mm	25X25
Round boring tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Servo power turret positioning accuracy	/	±2"
Servo power turret repeat positioning accuracy	/	±1"
Programmable hydraulic tailstock	/	Programmable
Maximum travel of tailstock	mm	360
Tailstock sleeve taper hole	type	Morse 4#
Tailstock sleeve diameter	mm	80
Sleeve travel	mm	100
Machine size(Length*Width*Height)	mm	2200x2000x1800
Machine weight	kg	3600
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant tank volume	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750
