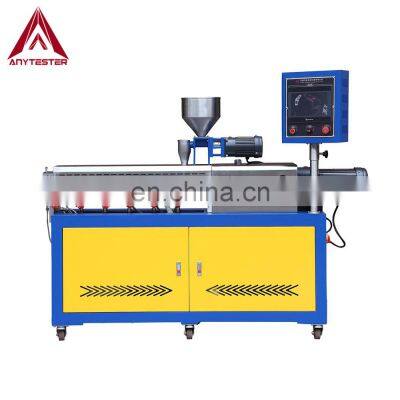

Lab Twin Screw Extruder for High Molecular Polymers

Product Description

Product Description
Product DescriptionAT395 Lab Twin Screw Extruder (original HY3921) is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable for lab test and quality control, teaching research and small scale production.SpecificationModelAT395Screw diameter¢20mmLength-diameter ratio (L/D)1:40Screw rotating directionco-rotating parallelScrew speed0~120rpmScrew materialSpecial tool steel of 40CrNiMoA chrome molybdenum alloy, treated with nitrogen, adjustment, chrome plating and superfinegrinding.CylinderHard alloy wear-resisting inner sleeve can be replacedHeating zone5 zones of cast aluminum heater for cylinder1 zone of heater for feed zoneHeating power:1kw for each heating zoneCovered with stainless steel safety coverCooling deviceWater circulating cooling system, equips with separate screwvalve flow control device for each zoneDrive power2.2kw gear motorFeeder0~50rpm variable frequency speed adjustment screw to feedmaterials forciblyElectric control systemPLC programmable LCD touch screen control, all parameterscan be control and display, the extruding process can bedynamic displayed and monitored. With USB port, easy tooutput and printout test dataPressure control systemAdopts imported high precision temperature and pressuresensor, with over-pressure protection function, canautomatically alarm and control the machine running orstopping.Output capacity3 ~ 15kg/hPower supply3phase, AC380V, 50HzDimensions1950×500×1500mmDetails & Features★ Different screw types can be selected according to different sample materials.★ Matched with different auxiliaries can extrude pellets, sheet, pipe, etc. (optional configuration).Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
