Electric crushing valve silo bottom double shaft crusher cement block crushing valve PSF-500

Product Details

Product Description

Product Description
1、 Overview
1. The throughput of large models can reach 1000m3/h
2. Applicable to all kinds of gasification chute and storage discharge outlet
3. Designed for logistics temperatures up to 120 degrees
4. Low energy consumption. At 25 revolutions, the power of the drive motor is only 3KW (specifications below B400) and 5.5KW (specifications above B500)
5. High wear-resistant materials are used for crushing claws and grid plates
6. Simple maintenance
7. Integrated speed detection device (optional)
8. When the integrated speed detection device is selected, the electric cabinet is equipped with it
2、 Performance characteristics
1. It has the functions of mechanical blockage removal and injection flow aid in the pressure reducing cone and the central blanking opening, that is, it has the functions of lifting, impact rotation and 360 degree dead angle free injection;
2. It has the function of preliminary crushing in the central blanking opening at the bottom of the silo, and the initially broken materials can pass through the central blanking opening smoothly;
3. It has the function of secondary crushing (double rotor crushing valve), requiring particle size ≤ 3cm, capacity ≥ 280t/ h, power ≥ 7.5kW, and the crushed materials can be transported normally through the air chute;
4. It has the function of quickly changing the warehouse without entering the cement warehouse or stopping the cement delivery for a long time (that is, which warehouse needs to be cleared can be quickly moved to which warehouse);

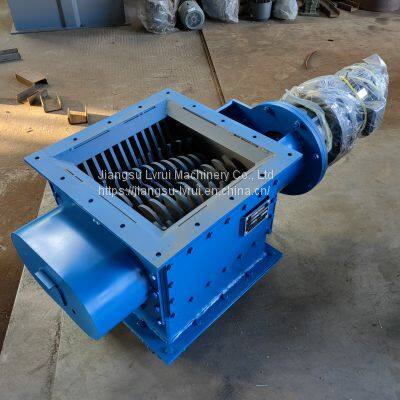

3、 Product real map
