Qt40-1 Semi Automatic Concrete 5inch 6inch Hollow Solid Block Making Machine Ghana

Product Description

Product Parameters

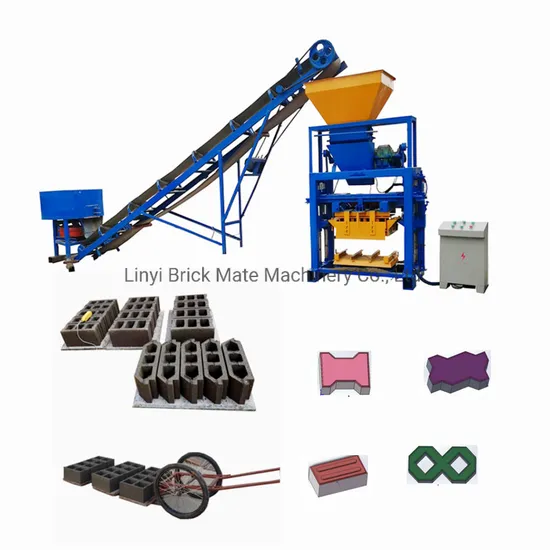

1.QT40-1 semi auto block making machine each part details

No	ITEM	Function	Motor	Technical details
1	JD350 pan mixer	Used to mixer various raw materails like sand,fly ash cement,stone dust,aggregate.	7.5KW	Diameter:1.2M
2	Belt Conveyor	Used to transport mixed material into block machine hopper	1.1KW	Length:6000mm Width:400mm
3	QT40-1 block machine	Adopting electrical vibration to make various block brick by changing moulds	13.45KW	No need installation ,can operate after connecting power
4	Block Trolley	Used to transport the blocks to stroage area	0KW	2sets
5	Pallet	Pallet is used to hold blocks,it can be recycled,usually 600pcs are enough	0KW	500pcs

2.QT40-1block making machine technical parameter

Overall size	2060×1730×1850mm	Host machine power	13.45KW
Molding period	30S	Vibration force	35.5KN
Pallet Size	880×550×30mm	Pallet quantity	500pcs
Weight	3T	Mixer model	Jd500
Voltage	According to local condition

Theoretical workshop area : 60m2 , need about 3-4workers .the office , curing area
and stacking area to arrange according your fact status. Detailed Photos
3.QT40-1 Production Capacity

QT40-1 Production capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	7	630-840	5040-6720
400X150X200	5	450-600	3600-4800
400X200X200	4	360-450	2880-3600
400X250X200	3	270-360	2160-2880
240x115x53	24	2160	17280
225X112.5X60	12	959	7679
we can design molds according to your requests

Capacity Mentioned is indicative only actual capacity varies with operator
efficiency and material quality etc
Stock overview
Packaging & Shipping
5 SETS OF QT40-1 can be shipped by 40FT CONTAINER
We can pack the QT40-1 whole line by plywood box and ship by groupage shipping to save cost.
Company Profile
4.Company introduction
LINYI BRICK MATE MACHINERY CO.,LTD has been committed to R & D production and sales of
various construction machinery since 1999 in China.
Brick Mate covers an area of 16,000 square meters workshop and has more than 300 employees,
30 Various types of technical personnel.Owning a large number of precision processing machinery
and advanced inspection, testing and debugging equipment, strong technical force, advanced equi
pment, Brick Mate offers block making machinery with reliable quality.
So far we have exported block machine to more than 60 countries.We have abundant experience
in serving customers home and abroad.
BRICK MATE'S Staff adheres to the policy that quality is everything and bring quality product to
the world
