1 3 gallon 3L 5L plastic bottle blow molding machine blowing moulding machinery

Product Description

Product Description

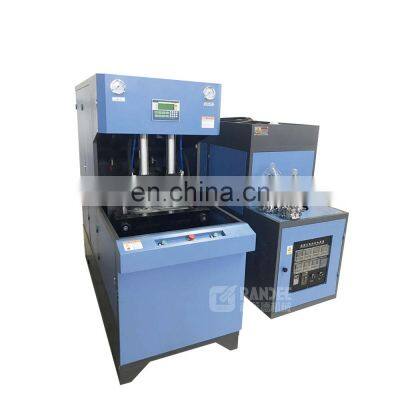

1 3 gallon 3L 5L plastic bottle blow molding machine blowing moulding machineryProduct DescriptionSpecifications:GD-C2 Semi-automatic water bottle blowing machineCE approvalSpeed: 600pcs/h for 5000ml pet bottleVolume:2500-5000mL Brief introduction of water bottle blow molding machine:1.GD-C2 Semi automatic blow moulding machine,is CE standard2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable5.Independent Temperature Control for different heating lamp to get ideal preform heating results6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state7.The bottle scrap rate less than 0.2%8.Operated only by one person without special training9.Simple installation & startup adjustment Main technical parameter:TypeItemUnitGD-C2 semi automatic blow molding machineContainerProduct material/PETVolumeL0.5-5L(2 cavity)6L-10L(1 cavity)Theoretic outputBPH600BPH for 5L pet bottlePreform lengthmm15-300Preform inner diametermm15-100Max mould plate dimensionmm450*550Max mould thicknessmm450MoldingClamping forceKN120Mould opening strokemm350Blowing air pressureMpa<=3Working pressureMpa<=1Machine size and weightMain machine weightT0.7Main machine dimensioncm175*75*170Heater dimensioncm187*63*145Heater weightT0.28Powerkw14 Machine show Bottle Preform Preheating datas setup interface Heater 2 cavity mold 5L Bottle preform Related productsCompany information Workshop detail Project cases FAQ
