Tianyi Wheel Loaders, Wheel Excavator, Forklifts, Truck, Electric

Tianyi Wheel Loaders, Wheel Excavator, Forklifts, Truck, Electric

US$2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SAE J517 R16S
Color
Black
Transport Package
PP Woven Belt
Specification
1/4′′-1′′
Trademark
tianyi flex
Origin
Zaozhuang Shandong China
HS Code
84314990
Production Capacity
10000

Product Description

Product Name:
WHEEL EXCAVATOR
Advantages:
.New appearance designed by joint R&D with well-known universities, simple but powerful
·Advanced patent transmission box and axle pass through finite element analysis and fatigue resistance testing to have continuously upgrades in reliability
.Continuously improved hydraulic system to realize more stable, flexible and high efficiency work
.Excellent grade ability and powerful digging force can fit for all kinds of different working conditions
.Heavier operating weight compared to other domestic brands to have much reliable mechanical performance
.Various attachments to working indifferent working places
.Various emissions engine available for European, North America and other countries.
Model No. TYWE069W TYWE084W TYWE110W TYWE120W Model No. TYWE069W TYWE084W TYWE110W TYWE120W
Operating weight 6900kg 8400kg 9800KG 10700kg G-G-Rotation radius 1842 2130 2130 2305
Bucket capacity 0.23-0.28m3 0.28/0.33m3 0.28/0.33m3 0.35m3 H- H-Tire wheelbase 2400 2400 2390 2400
Engine No. YC4FA65-T300 YC4FA75-T300 YC4FA85-T300 YC4FA85-T300 I - I - Tire size 825-16 825-16 825-20 900-20
Engine power 48KW/2200rpm 55KW/2200RPM 62.5KW/2200RPM 62.5KW/2200rpm J- J-Rotation platform width 1910 2015 2200 2240
Fuel tank capacity 120L 120L 120L 160L K-K-Max.digging height 6768 7568 8055 7800
Walking speed 30 Km/h 30 Km/h 30 Km/h 28 Km/h L-L-Max.Dumping height 5023 5738 5984 5900
Swiveling Speed 10 r/min 12 r/min 12 r/min 13 r/min M-M-Max.Digging depth 3419 3558 2969 4050
Grade ability 30° 30° 35° 35° N-N-Max.Digging distance 6865 7127 7537 7652
Bucket digging force 31.5KN 45KN 48 KN 55KN Jig Max. Dumping height 4593 5718 5984 5600
Hydraulic pump type Electro hydraulic Pump Load-sensitive Plunger Pump Electra hydraulic Pump Electro hydraulic Pump Jig Max.Lifting weight 400Kg 600Kg 600Kg 1000Kg
A- A-Length in transportation 6079 6667 6815 7159 Jig Max.Opening size 1240 1240 1240 1240
B- B-Width in transportation 1910 2130 2200 2240 Jig Min.Opening size 205 205 205 155
D- D-Height in transportation 2830 2850 3170 3150 Jig Max.Lifting height 7262 7984 8300 7865
E-E-Ground clearance for counter weight 1050 1045 1160 1075 Jig Max.Lifting distance 6720 6929 7515 8055
F-F-Min.Ground clearance 351 370 310 310

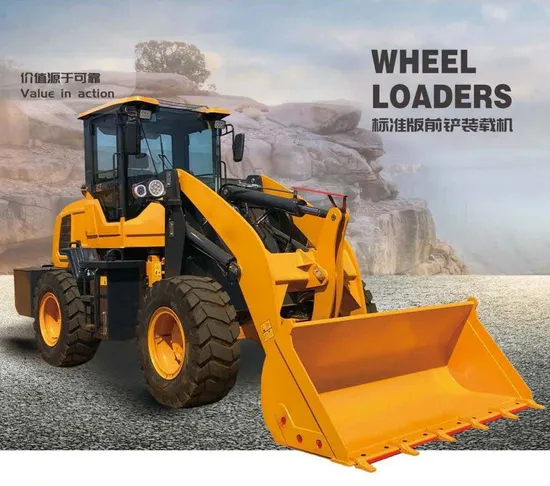

Product Name:
WHEEL LOADERS
AVALAELE AITTACHMENTS:
Log Fork
Pallet Fork
Quick Change
Grass grapple
Sweeper
Circular Clip
2in1 Bucket
Mixing Bucket
Overall Performance/Models HL916 HL918 HL920 HL926 HL928 HL930 HL936 HL938 HL939 HL946
General Machine Performance Operating weight KGS 2150 2800 3100 3400 3500 3700 4750 5800 6000 9300
Length mm 4750 5140 5460 5500 5600 6100 6200 6600 6740 7200
Width mm 1300 1600 1800 1800 1900 2030 2000 2050 2050 2400
Height mm 2500 2670 2700 2700 2720 2720 2780 2860 2960 3300
Wheel base mm 2020 2050 2200 2200 2250 2350 2400 2780 2810 3150
Wheel track mm 1120 1350 1400 1400 1400 1450 1580 1670 1700 2100
Bucket Performance Rated load KGS 800 1200 1500 1500 1600 1800 1800 2000 2500 3000
Standard bucket capacity m3 0.3 0.4 0.5 0.6 0.7 0.7 0.8 1 1.1 1.7
Bucket width mm 1300 1580 1800 1800 1900 2000 2000 2000 2200 2400
Dumping height mm 2400 2800 3200 3200 3200 3500 3500 3600 3600 3800
Dumping reach mm 600 650 700 700 800 850 900 950 800 1200
Max.raising height mm 3500 3750 4010 4010 4030 4480 5000 5300 5400 5600
Engine Performance model ZN390BT-25G YUNNEI490 YUNNE1490 YUNNEI 490 YUNNEI 490 Turbo YUNNEI 490 Turbo YUNNEI4102 Turbo YUNNEI4102 Turbo YUCHAI4105 Turbo DONGFANGHONG 6105T/ WEICHAl Deutz
