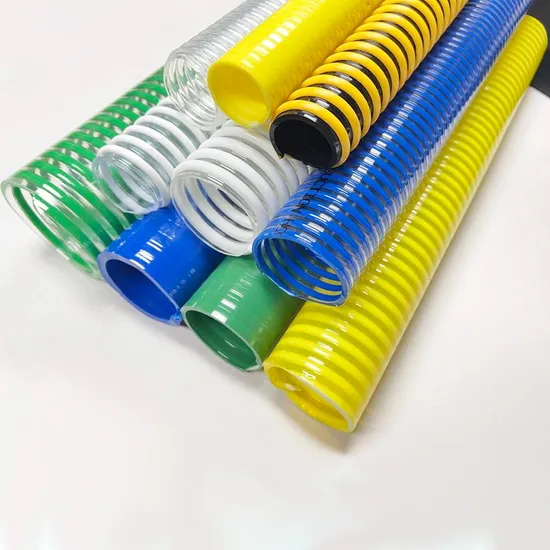

Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage
| US$0.12-2.55 | 100 Meters (MOQ) |
Basic Info.
Model NO.
suction hose
Type
Thermosetting Plastic Pipe
Color
Blue, Orange, Yellow, Red, etc
Hollow
Hollow
Shape
Round
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Length
10m/20m/30m/50m
Thickness
3mm-12mm
Working Pressure
3bar-10bar
Working Temperature
-5ºC to +65ºC
Features
Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium
Liquid, Powder, Granules
Bursting Pressure
6bar-30bar
Application
Ndustry, Agriculture and Construction
Reinforced Material
Integral Helix Rigid PVC
Transport Package
Woven Plastic Cloth Wrapped
Specification
3/4"-16"
Trademark
ET
Origin
Shandong, China (Mainland)
HS Code
3917390000
Production Capacity
2000tons/Year
Product Description
HEAVY DUTY PVC FLEXIBLE HELIX SUCTION HOSE PIPE 1 2 3 4 5 6 8 10 12 INCH FOR MINING VACUUM WATER OIL PUMP SPA DUCT GRIT SEWAGE| ID | OD | WP | BP | W/A | COIL | |||
| in | mm | mm | bar | psi | bar | psi | g/m | m |
| 3/4 | 19 | 23 | 6 | 90 | 18 | 270 | 230 | 30 |
| 1 | 25 | 29 | 6 | 90 | 18 | 270 | 290 | 30 |
| 1-1/4 | 32 | 38 | 6 | 90 | 18 | 270 | 400 | 30 |
| 1-1/2 | 38 | 46 | 6 | 90 | 18 | 270 | 650 | 30 |
| 2 | 50 | 56 | 5 | 75 | 15 | 225 | 700 | 30 |
| 2-1/2 | 63 | 71 | 4 | 60 | 12 | 180 | 1170 | 30 |
| 3 | 75 | 83 | 3 | 45 | 9 | 135 | 1300 | 30 |
| 4 | 100 | 110 | 3 | 45 | 9 | 135 | 2300 | 30 |
| 5 | 125 | 137 | 3 | 45 | 9 | 135 | 3300 | 20 |
| 6 | 152 | 166 | 2 | 30 | 6 | 90 | 5500 | 10 |
| 8 | 200 | 214 | 2 | 30 | 6 | 90 | 6300 | 10 |
| 10 | 254 | 270 | 2 | 30 | 6 | 90 | 10000 | 10 |
| 12 | 305 | 329 | 2 | 30 | 6 | 90 | 18000 | 10 |
| 14 | 358 | 382 | 2 | 30 | 6 | 90 | 20000 | 10 |
| 16 | 408 | 432 | 2 | 30 | 6 | 90 | 23000 | 10 |
A: The standard length is 100m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m.
Q: What is the minimum and maximum size you can produce?
A: The minimum size is 3/4"-19mm, the maximum size is 16"-406mm.
Q: What is the working pressure of your layflat hose?
A: The maximum working pressure of our layflat hose is 10bar.
Q: Is your layflat hose UV resistant?
A: Yes, our layflat hose is UV resistant.
Q: What is the service life of your layflat hose?
A: The service life is 2-3 years, if it is well preserved.
Q: What is the MOQ of your layflat hose?
A: We can accept orders of any quantity.
Q: Can you make customer logo on the hose and packaging?
A: Yes, we can make your logo on hose body and packaging and it is free.
Q: What quality guarantee you can supply?
A: We tested the quality each shift, once quality problem, we will replace our hose freely.
