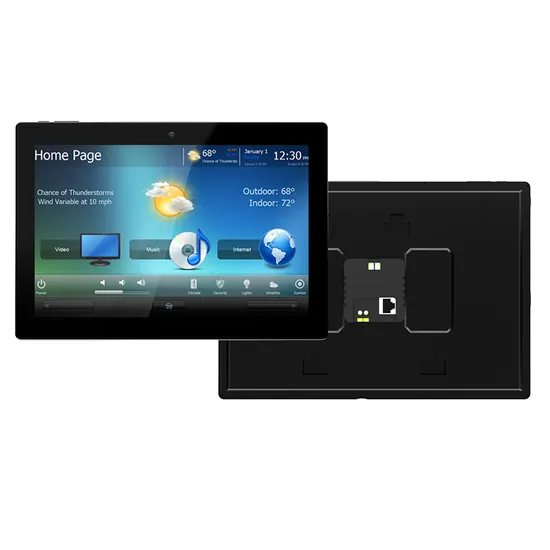

Portworld ODM OEM 10.1 Inch AC110V~240V Android Debian Smart Home Poe Control Panel
Basic Info.
Model NO.
YC-SM1011
Built-In Bluetooth
Built-In Bluetooth
Built-In Microphone
Built-In Microphone
Card Reader
Without Card Reader
Certification
CB, Ce, ROHS
Cpu Core
Quad-Core
Cpu Type
Boxchip
Display Resolution
1280*800
Drive Interface
RJ45
Fingerprint
Without Fingerprint
Front Camera Pixel
2MP-3MP
Hard Disk Capacity
16G
Memory
2GB
Network Mode
WiFi, RJ45
Operating System
Android
Rear Camera Pixel
No Camera
Remote Control
No
Screen Size
≥10.1"
Screen Type
Capacitive Screen
Speakers
Speaker
Security Protection
No
Voice Assistant
No
Warranty Period
1 Year
Webcam
Without Webcam
Dimension
247.1*173*12mm
CPU
Rk3568 Quad-Core Arm Cortex-A55,up to 2.0 GHz
RAM
2GB
ROM
16GB
System
Android 11
Resolution
1280*800
Touch Panel
10 Points Capactive IPS Touch Panel
Brightness
300nits
Plastic Case
Plastic+ Glass Touch Panel
RJ45
Ethernet Interface Input (Rj-45 Cable) ,Support Po
AC
110V-240V Input
Camera
Front 2.0MP Camera
RS485
Yes (a,B)
Mount
in Wall Mounted/ Embedded
Bracket
Metal Back Wall Bracket
Transport Package
White Color
Trademark
Portworld
Origin
Shenzhen, Guangdong, China
HS Code
8528591090
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 12.00cm
Package Gross Weight
2.000kg
Product Description
Product DescriptionProduct Parameters
| 10.1 inch YC-SM1011 | Dimension | 247.1*173*12mm |
| CPU | RK3568 Quad-Core ARM Cortex-A55,up to 2.0 GHz | |
| Ram | 2G | |
| Rom | 16G | |
| System | Android 11 | |
| Display size | 10 inch | |
| Resolution | 1280*800 | |
| Touch Panel | 10 points capactive IPS touch panel | |
| Brightness | 300Nits | |
| Active area | 16:09 | |
| WIFI | 2.4G WIFI /5G wifi option | |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet | 10M/100M | |
| Plastic case | Plastic+ Glass touch panel | |
| RJ45 | Ethernet interface input (RJ-45 cable) ,Support POE | |
| AC | 110V-240V INPUT | |
| Type C | Type C*1 | |
| Set | Reset*1 | |
| Physical buttons | Physical buttons (reset, power, volume+, volume-) | |
| Restart | Restart *1 | |
| RS485 | Yes (A,B) | |
| Camera | Front 2.0MP Camera | |
| Mic | Mic*1 | |
| Speaker | 2W *2 | |
| Bracket | Metal back wall bracket | |
| Video | MOV 1080P/AVI/WMV/RM/RMVB/3GP/MKV/MP4/ ASF/ VOB | |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | |
| Entertainment | Video / Movie / Music / FM online | |
| Battery | NO | |
| Mount | In wall mounted/ Embedded | |
| Color | Black | |
| Language | Support multi-languages |
Certifications
FAQ
1. Do you accept sample order? A: Yes 2. How long does it take to deliver the goods? A: Sample orders are usually shipped within 1~3 working days if in stock. Bulk orders depend on quantity. 3. What is your Mini Order Quantity (MOQ)? A: It depends on different products. There is no MOQ for ad players; the MOQ for tablets is 500pcs. 4. What's your payment term? A: 30% advance deposit by T/T, and 70% paid before shipment. 5. Do you support customization? A: Yes, we support OEM/ODM, such as customized logo, customized packaging, customized colors, etc. 6. Do you support CKD/SKD service? A: Yes, we support CKD/SKD service for customers to do customized assembly in their side.
