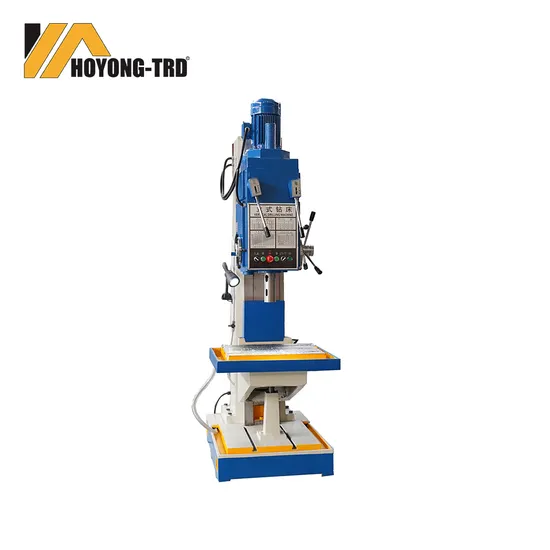

Vertical Square Column Drilling Machine Z5150b
| US$2,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5150B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Driiling Capacity
40mm
Max.Spindel Travel
250mm
Spindle Taper
Mt4
Spindel Speed
31.5-1400rpm
Motor Power
3kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description
SQUARE COLUMN VERTICAL DRILLING MACHINE:
Square Column Vertical Drilling Machine Z5140B
Main feature of drilling machine
1. Z5140B and Z5140B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Z5150B and Z5150B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
Standard accessories
Coolant system,tapping unit,halogen work lamp,operating tools,operator manual
SPECIFICATIOS:
| SPECIFICATION | UNIT | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
| Max drilling diameter | mm | 40 | 50 | ||
| Spindle taper | MT4 | MT5 | |||
| Stroke of spindle quill | mm | 250 | |||
| Spindle box travel(manual) | mm | 200 | |||
| Spindle speed steps | 12 | ||||
| Spindle speed range | r.p.m | 31.5-1400 | |||
| Spindle feed steps | 9 | ||||
| spindle feed range | mm/r | 0.056-1.80 | |||
| Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
| Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
| Vertical travel | mm | 300 | |||
| Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
| Main motor power | kw | 3 | |||
| Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
| Net weight | kg | 1250 | 1350 | 1250 | 1350 |
