Juice Bottle Maker / Juice Bottle Making Machine

Product Description

Juice Bottle Maker / Juice Bottle Making Machine
BM-8YH high temperature semi-automatic PET bottle blow molding machine is suitable for producing PET plastic containers and bottles from 150-2000ml. It is widely used to produce the juice bottle, tea bottles.

Equipment list:

NO.	NAME	MODEL	QTY	NOTE
1	Semi-automatic high temperature resistant blow molding machine -rotary infrared pre-heater	BM-8YH	1set	2pcs blower + 1pc oven
2	HP Air Compressor	2.4m3/min 30Kg	1set	/
3	Air tank		1set
4	Air dryer and filter	2.0 m3/min 30Kg	1set	/
5	Strong cold dryer air filter	4.0 m3/min 30kg	1set	/
6	High-pressure oil pipe		15m	/
7	Spare parts	One year	1set	/
8	Water chiller	3HP	1pc	/
9	Die heater		2sets
10	Bottle mold	150ml-2000ml	1set	2 cavity

*Spare parts List :
Seal cushion(10pcs);Lamps(5pcs);Fuse(3pcs);Switch(1pcs);breaker(1pcs);Silicon controlled (1pcs)
pressure adjust (1pc)
Features:
· Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
· The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
· The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
· The machine can be operated in the step-by-step mode and the semi-auto mode.
· The machine is small with low investment, easy and safe to operate.
Technical Parameter of blow molding machine:

Main machine (blower + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	2
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	2
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mold size(mm)	390*345
	Mold thickness	Adjustable
	Mold spacing(mm)
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1000-1800
	Machine size(L*W*H)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	Customized
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size(L*W*H)	1.35*0.55*1.15
	Oven weight (KG)	300

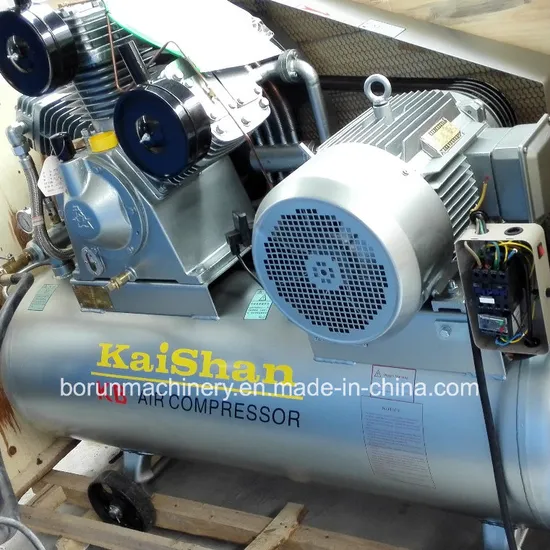

HP air compressor:
Function: Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

Air compressor	Unit	2.4M3/min 30KG
Volume	M3	2.4
Pressure	Kg	30
Speed	r/min	720
Power	KW	15*2
Overall Dimension	mm	1800*1450*1000
Weight	kg	1000

Air Filter:
Functions: Air filter is to clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.

Refining-Filter	Unit	2.0M3/min 30Kg	4.0M3/min 30Kg
Flow Capacity	M3/Min	2	4
Max. work pressure	Mpa	3.0	3.0
Inlet Temp.	ºC	≤50	≤50
Cold Medium	mm	750*350*350	750*650*350
Weight	Kg	20	40

Air dryer:
Function: Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

Refrigeration Air Dryer	Unit	2.0M3/min 3.0Mpa	4.0M3/min 3.0Mpa
Flow capacity	Nm3/min	2.0	4.0
W.P	Mpa	3.0	3.0
Inlet Temp.	ºC	≤80	≤80
Dew point	ºC	23	23
Ambient Temp.	ºC	≤38	≤38
Power supply	V/HZ	220/50	220/50
Compressor power	Kw	0.75	1.5
Cold Medium	mm	1050×650×1100	1050×1250×1100
Weight	Kg	120	250

water chiller:

Model		03WCI
4.4/38ºC Cooling capacity(Kcal/h)		7188
Compressor		All-closed vorticity
Compressor power (KW)		2.5
Refrigerant		R22
Chilled water pump power(KW)		0.75
10ºC Max. flow rate of chilled water(L/min)		55
Flow water inlet and outlet pipe		1''
Condensing water rate L/min		≥36
Chilled water inlet and outlet pipe		1''
Exterior dimension	Length(mm)	1000
	Width(mm)	600
	Height(mm)	1180
Water tank capacity	L	50
Weight	Kg	150
