CE Certification Sanitary Napkin Machine Production Line to Germany 0.1% off

CE Certification Sanitary Napkin Machine Production Line to Germany 0.1% off

US$450,000.00-550,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JWC-KBD1000-SV
Real Running speed
＞800PCS/min
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
After-sales Service
Field Installation, Commissioning and Training
Model
Jwc-Kbd1000
Computerized
Yes
Product Size
S/M/L/XL
Working Speed
900 PCS
Installation Capacity
300kw
Certificate
CE, SGS
Machine Size
25*8*4.5m
Feature
Full Servo Drive
HS
8441809000
Place of Origin
Jiangsu, China
Machine Type
Full Servo
Transport Package
Containers
Specification
20GP 40HQ
Trademark
JWC
Origin
China
HS Code
8441809000
Production Capacity
50 Sets

Product Description

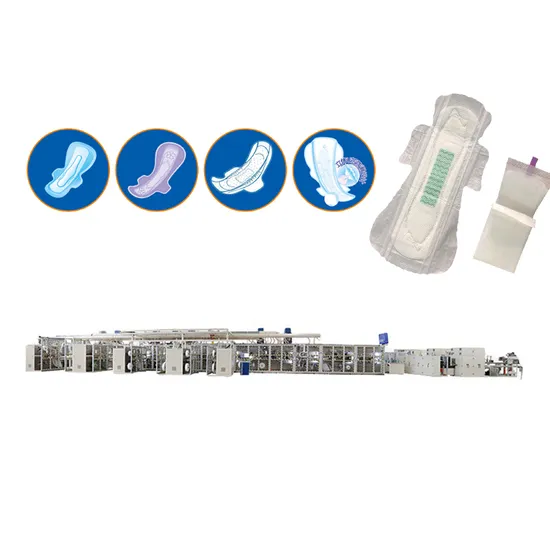

CE Certification Sanitary Napkin Machine Production Line to Germany
Product Description
Sanitary napkin production line includes main machine, glue applicatos, packing system and other accessory equipments include air compressor, vision detection system and metel detection machine etc. Sanitary napkin machine can produce both fluff pulp type and ultra-thin type, with wings and without wings.
We can customize the sanitary napkin with quick-easy package ,individul package and straight package.
This machine will need following materials:fluff pulp,non woven,tissue,film,SAP, glue,ADL,air laid paper, release paper, quick-easy tape
Machine Standard Configuration:
Machine frame structure and main characters
Reasonably solid square steel frame: Panel 25mm thick, adopt specular paint, 6 surfaces processing, solid cage with 60 * 60mm square steel in module design, the base frame with square tube 100mm × 100mm, 18mm thick bottom plate, 6 surface processing also ,widening after gearbox for repair. Spliced type main board by screw, make sure the high efficiency .
Glue applicators put on the 2nd platform, shorten the glue supply distance
The main air suction bucket is installed with negative pressure display; the air scoop driven wheel is installed with quick fixture to facilitate the removal of the belt; the lower side of the conveyor belt above the material is installed with support plate to prevent the polymer and foreign matters from falling and polluting the lower material (the belt specification is labeled for maintenance)
Sanitary Napkin Machine frame structure and main characters
1.The machine has reasonably solid square steel frame
2. Crusher system
3. Fluff forming system
4.SAP feeding system
5.Tissue, roll diameter φ800mm (airlaid paper,roll diameter φ1000mm) supply		 6. Fluff core wrapped by tissue
7.Absorbent paper supplyφ1200mm
8.Absorbent paper short cutting device
9.Fluff core inner cut device 1 set, adopt the frame type tool holder structure to improve the service life of the tool roller
10. The waste at both ends of the core body is sucked and collected
11.Top sheet nonwoven(perforated film) supply, roll diameter φ800mm
12.ADL (blue chip) supply,φ600mm
13. Bottom film supply, roll diameterφ600mm
14.Bottom nonwoven supply, roll diameterφ800mm
15. Central release paper device, roll diameter: φ500mm
16. Central release paper cutter
17. Forming cutter
18. Wastage recycling unit
19. Product 180 degree overturn
20. Wing release paper adding unit, φ500mm
21. Wing release paper cutte
22. Product 90 degree turn round
23. Packing film supply, roll diameter φ800mm
24. packaging film and product adhesive roller
25. Second grade warp
26. Product quick easy package exhaust
27. Quick easy tape adding unit
28. Quick easy package sealing
29. Quick easy package cutting unit
30. Reject exist, auto rejecting (air blow)
31. Two way output device
32. Reserve stacker and auto bagger machine
33. Driving system
34. Air supply
Product Parameters
1 Design speed 1500pcs/min (300M/min)
2 Working speed 900pcs/min (3 pieces product)
3
 Qualified rate 98%(calculate based on 7.5 hours, the rate between qualified and total production quantity, except waste caused by glue system or splicing joint)
4 Production efficiency ≥85%( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity)
5 Capacity ~300KW
7 Power Three phases four wires 380V/50Hz (with ground lead)
9 Air pressure ≥0.6mpa, 2.8 cm3/min
11 Total weight ~ 60 tons
12 Machine size ~25×6×3M (L×W×H)
13 Working space ~26×9×4.5 M (L×W×H)
14 Machine color Customized
15 Product size 1 size
16 Containers ~4×40HQ
Features at a glance
Auto lubricating System
Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system		 Human-Machine Interface
Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen		 Materials automatic feeding System
Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility
Name Brand Origin
1 Servo motor Mitsubishi Japan
2 Auto web guider FIFE USA
3 Touchable screen Banner USA
4 PLC controlling system Mitsubishi Japan
5 Sensor Banner USA
6 Safety production Shneider France
8 Cutter raw material M7 USA
9 Gear according to usage BEM/NSK/SKF Germany/Japan/Sweden
10 Timing belt Optibelt or Gates Germany/USA
11 Low voltage electronic Shneider France
13 Temperature controlling system Omron Japan
15 Pressure regulating valve Airtac Chinese Taiwan
16 Pneumatic element Airtac Chinese Taiwan
17 Solenoid valve Airtac Chinese Taiwan
18 Moisture separator Airtac Chinese Taiwan
19 Automatic fault alarm Mitsubishi Japan
