Double Horizontal Shaft Compulsory Mixer

Product Description

Product Introduction

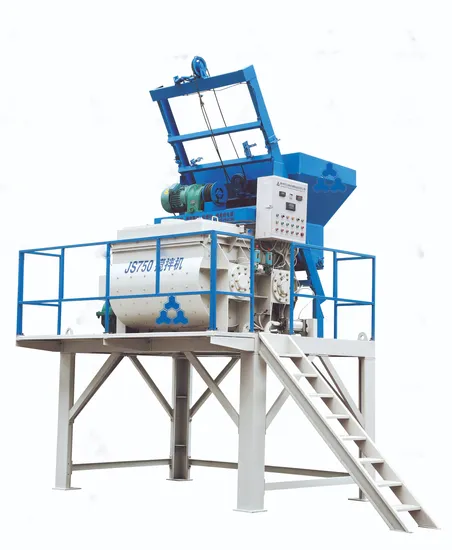

JS750 Double Horizontal Shaft Compulsory Mixer
Technical Parameters

Type	LJB350	JS500	JS750	JS1000
Charging Volume(L)	560	800	1200	1500
Discharging Volume(L)	350	500	750	1000
Productivity(m³/h)	≥17.5	≥25	≥37.5	≥50
Speed of Mixing Blade(r/min)	35	35	32.6	32.6
Mixing Blade(PCS)	3	14	14	16
Height of Unloading Material(mm)	1200	1500	1600	2080
Net Weight(T)	2	4	6.8	9

Technical Features
★ Equipped with multiple shaft end seal protection devices and wind pressure seal protection devices to effectively prevent leakage;
★ Unique mixer monitoring system can monitor the working status of the reduction box, discharge pump, and electric lubricating oil pump at any time;
★ Equipped with a pressurized upper cover water discharge system, the spraying area is larger and the water discharge is more uniform
★ Equipped with a DC24V centralized lubricating oil pump for concrete mixers, the running time can be programmed independently, it is waterproof, dustproof and has excellent performance;
★ Equipped with an enhanced reduction gearbox, and processed with high-precision technology, it has strong load capacity and longer service life;
Equipped with high-quality high-wear-resistant alloy stirring arms, the service life is 3-5 times that of ordinary stirring arms;
★ Optional reduction gearbox filter cooling system, oil-free water-cooled shaft end sealing system, camera system, high-pressure cleaning system, weighing protection system, microwave moisture measurement system
Notes : The above JS750 Mixer can be formed into mixing plant if combined with the batching machine , also can be used as engine of mixing plant . it is suitable for all kinds of prefabricated and construction project . The production and mixer of the concrete brick. The mixer is capable of mixing dry hardness concrete , plasticity concrete , fluidity concrete , soft skeletal material and all kinds of motar. The blades are screw layout , so it has the advantages of short mixing time, even mixing to meet the requirements of different construction sites.
Mixer Interior Display
