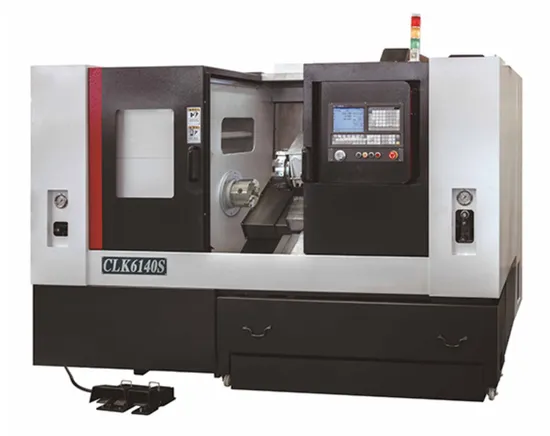

Horizontal Turning Machine Slant Inclined Bed Lathe
| US$24,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLK6140S
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
2800× 1750× 1870mm
Trademark
TOSUN
Origin
Suzhou
HS Code
8458110090
Production Capacity
1, 000 PCS/Year
Product Description
1.Equipment Features This machine tool is a fully functional 30 degree inclined bed CNC lathe, especially suitable for high-speed and high-precision processing of medium and small disk and shaft parts. This product has two linear axes, X and Z. The tailstock can be moved integrally with a long stroke through hydraulic drive. It can complete turning, drilling, boring, tapping, reaming and other functions in one clamping.2.Equipment Specification
| Description | Unit | Specification |
| Max. swing over bed | mm | φ540 |
| Max. processing diameter (not over carriage/over carriage) | mm | φ400/270 |
| Max. processing length | mm | 550 |
| Spindle bar-through diameter | mm | φ50 |
| X axis travel | mm | 220 |
| Z axis travel | mm | 600 |
| X axis fast moving speed | m/min | 18 |
| Z axis fast moving speed | m/min | 18 |
| Cutting Feed speed | mm/min | 1-5000 |
| Spindle speed | rpm | 4000 |
| Spindle nose | A2-6 | |
| Spindle through hole diameter | Φ64 | |
| Spindle chuck | mm | Hydraulic 8" |
| Spindle motor | KW | 7.5 |
| No. of tools | pc | 10 |
| Size of square tools | mm | 20 |
| Diameter of round hole tools | mm | 25 |
| Tailstock travel | mm | 450 |
| Tailstock feed type | hydraulic | |
| Positioning accuracy | mm | ±0.008 |
| Repeated positioning accuracy | mm | ±0.004 |
| Power | AC 380V 50Hz | |
| Machine size | mm | 2800×1750×1870 |
| Machine weight | kg | 3500 |
Standard Delivery
CNC system: Fanuc
8-inch three-jaw hydraulic chuck (Taiwan);
Movable hand pulse;
Z-axis rigid tapping;
Centralized automatic oil lubrication;
External cooling system (including chip tray, cooling box, cooling pump);
Manual chip removal;
Fully protective sheet metal outer shield and internal screw and guide rail shields;
Adjusting horns;
Work light;
Work warning light;
Hydraulic station
Optional Delivery
CNC system: Siemens, Mitsubishi, GSK, etc
Collet chuck
