Honle SVC Series Factory Supply Automatic Voltage Stabilizer

Product Description

HONLE SVC Series Automatic Voltage Stabilizer
Product discription
1. Single-phase high accuracy full automatic AC voltage stabilizers.
2. Self- coupling voltage regulator, servo motor, automastic control circuit.
3. Advantages: small volume, light weight,undistorted waveform, reliable performance,delay time and so on.

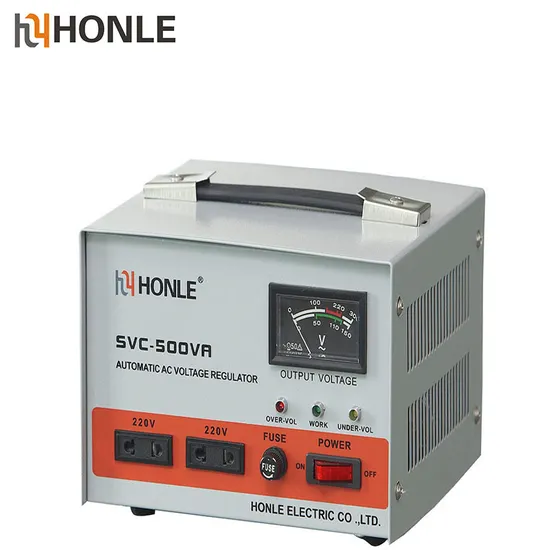

Product picture

TECHNICAL INDEX

SVC SERVO MOTOR VOLTAGE STABILIZER_Technical Features
Input voltage			90-250V, 110-250V, 140-260V(Can be option)
output voltage			220V±3%
Phase			Single Phase
Frequency			50Hz/60Hz
Adjusting time			<1S(When input voltage has a change of 10%)
Over voltage protection			YES(245±5V)
Over load protection			Optional
High temperature protection			Optional
Under voltage protectiom			Optional
Ambient temperature			(-5) to +40ºC
Temperature rise			<60ºC(full load)
Relative humidity			<90ºC
Wave form distortion			No wave form distortion
Insulation resistance			≥2MΩ
Efficiency			98%

Supply Ability
5000 piece/ pieces per month

Packing details

Model	Unit	Package size(cm)	Weight(kg)
500VA	4	44*25*33	4.5
1000VA	4	49*28*39	5.5
3000VA	2	60*38*30	12
5000VA	1	54*29.5*30.5	22.5
10000VA	1	34.5*29.5*54	35
15000VA	1	49.2*41.87	45

Port:Ningbo
Lead time :30 days upon order confirmation.

FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, D/P,Western Union PayPal. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 30 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 8. what kind of certificates you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS and so on.
Dear friends, we are your Reliable Voltage Stabilizer Partner!
We appreciate if you leave detail product information here or send email to our mail box: .
It's our honor to relate with you!
We will feedback as soon as possible. Thanks very much.
