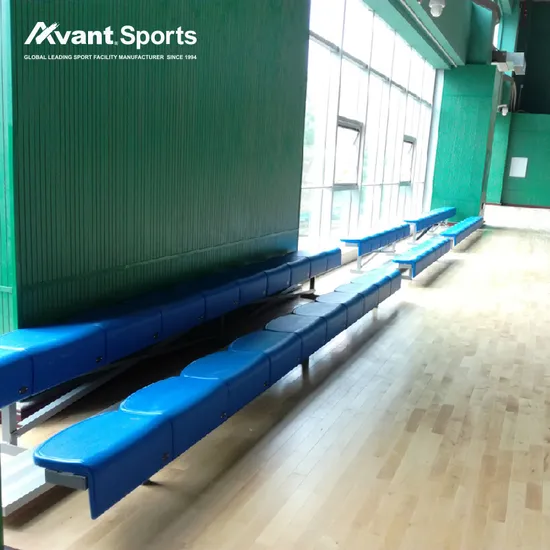

2 Row Bleachers Aluminum Bleachers Tip and Roll Aluminum Bleacher

Product Description

1.Product Name - Ango Aluminum Bleacher
2.Rows:1-4 rows
3.Specifications:

Ango Series(Portable/Fixed)
Rows	1 row	Seat Height	400mm
		Seat Width	250mm
	2-3 rows	Elevation	350mm
		Riser Height	181mm
		Row Width	637mm
	4 rows	Eelevation	318mm
		Riser Height	148mm
		Row Width	637mm
Length Options		3200mm,4600mm,6400mm(Remakrs:6400mm not recommended for portable)

4.Dimension Table:

Seat Type	Rows	Overal Height*Width (Fixed)	Overall Height * Width (Portable)
Lepai	2 rows	581mm*947mm	581mm*980mm
	3 rows	762mm*1584mm	762mm*1617mm
	4 rows	762mm*2221mm	762mm*2254mm
Aluminum Bench	2 rows	581mm*887mm	581mm*954mm
	3 rows	762mm*1524mm	762mm*1591mm
	4 rows	762mm*2161mm	762mm*2228mm
Seat Color Options

2,Features 1.Made of aluminum, lightweight
2.Stable and Strong
3.Pass the load test of 7KN/m2
4.Portable option available for removal
5.Anti-slipping floorboard for more safety
6.End cap available for safety
7.Rubber pad underneath for protecting the floor 3.Components More than 50 years life span; The bleacher system composed of aluminum understructure, decking, seats and casters.
1.Understructure
Made of aluminum angles; Powder coating surface treatment with silver as default color option
2.Diagonal Bracing
The stability and strength of the bleacher system is enhanced by the diagonal bracing.
3.Aluminum Floorboard
Made of 6063-T5 aluminum alloy. Passed 5KN/m2 load test; Anti-slipping surface pattern design with anodization treatment. End cap offers additional protection for the audience.
4. Support Beam Under Plastic Seats
Dual galvanized steel pipe beam system to support the seats. Made of Q235 steel; High strength and excellence in anti-corrosion
5. Lepai Plastic Seat
Made of HDPE; Blow-molded. Offers a better seating experience especially in the cold weather.
6. Aluminum Bench
Made of 6063-T5 aluminum board. Anodized surface treatment with anti-slipping pattern design; Easy for cleaning and maintenance. End cap offers additional protection for the audience.
7. Casters For Portability
4"universal wheel caster for the optimal portability with in-built braking system. Caster made of PU which is wear-resistant, resilient and anti-slipping.
8. Rubber Pads
Made of EVA. Equipped with every 1 m spacing interval; Protect the floor from marring.
