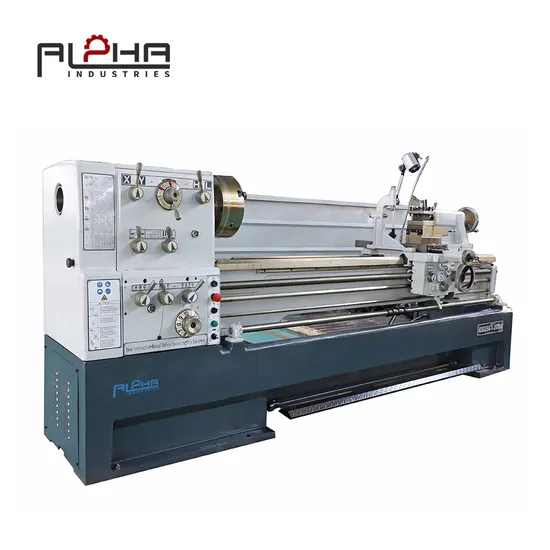

Sell Sturdy and Durable Metal Lathe C6256X2000 Bench Lathe Turning Center

Product Description

Product Description
The surface of the bedways is supersonic frequency hardened
The spindle bore size is 105mm.the spindle system is high rigid and accuracy
There is no need for change gears,the machine can turn about 89 kinds of metric,Inch,Module,and D.P.threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of certain length.
One-piece iron casting base allows heavier cuts.
Machine comes with rapid travel on apron
Product Parameters

Basic Info.
Model NO	C6256x2000		Guide Rai	HorizontalGuide Rail
Tool Holder	4Tool Post		Power Source	Electric
Controlling Mode	Artificial		Automatic Grade	Manual
Setting Mode	Floor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specification	3500×1100×1650		Trademark	Alpha industries
Origin	China		ProductionCapacity	100 Sets/Year

Technical Parameters

Model No.	Unit	C6256x2000
distance between centers	mm	1000/1500/2000/3000 (39.37"/59.06"/78.74"118.11")
swing over bed	mm	560(22")
swing over carriage	mm	420(16.54")
swing over gap	mm	870(34.25")
spindle bore	mm	Ø105(4.13")
taper of spindle bore	mm	Ø113(4.45") 1:20
spindle nose		D1-8
step of spindle speeds	steps	12
range of spindle speeds	rpm	36-1600
range of cross feeds	mm/r	0.027-1.07
range of longitudinal feeds	mm/r	0.063-2.52
range of inch threads/No.		28-2T.P.I/26
range of metric threads/No.	mm	1-14mm/22
range of D.P. threads/No.		4-56D.P./24
range of mould threads/No.		0.5-7mm/18
rapid feed of cross traverse	m/min	1.9
rapid feed of longitudinal traverse	m/min	4.5
top slide travel	mm	145(5.71")
cross slide travel	mm	360(14.17")
max. size of tool(W×H)	mm	25×25(0.98"×0.98")
tailstock quill travel	mm	150(5.91")
tailstock quill diameter	mm	75(2.95")
taper of tailstock quill		MT5
motor	kW	7.5Kw/11Kw available
packing size	mm	2500/3000/3500/4500×1100×1650
N.W.	kg	3200/3500/4000/4500

Standard Accessories

3 jaw chuck and adapter	4 jaw chuck and adapter	face plate	steady rest
follow rest	oil gun	thread chasing dial	operation manual
one set of wrenches	2 dead centers	sleeve	foot brake
coolant pump	halogen lamp	splash guard	micro carriage stop

Optional Accessories

quick change tool post	driving plate	taper turning attachment	digital readout1.5/2/3)
Nr 12 standard for Brazil	one piece iron casting stand

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
