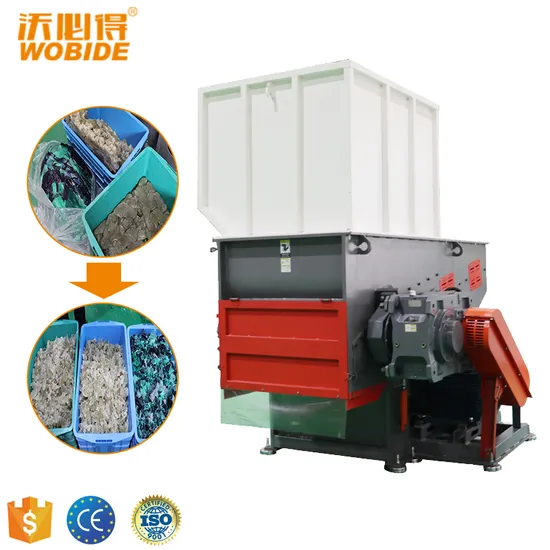

CE Certified Recycle Shredder Machine for Waste Plastic PVB

Product Description

Product Information
Product Specifications

Model	WPS600	WPS800	WPS1000	WPS1200	WPS1600
Main Shaft Length(mm)	600	800	1000	1200	1600
Tactical Diameter(mm)	280	400	450	450	645
Main Shaft Speed(rpm)	78	78	78	78	78
Ram Travel(mm)	600	800	1000	1200	1600
Rotor Blades(pcs)	39	51/57	63/92	81/116	140/156
Fixed Blades(pcs)	2	2	3	4	5
Motor Power(kw)	22	37	55/75	75/90	75*2
Hydraulic Power(kw)	2	3	4	4	5
Screen Mesh Diameter(mm)	30-80	30-80	30-120	30-120	30-120
Cutting Chamber Dimension(mm)	600*600	800*800	1000*1000	1200*1250	1600*1400
Overall Dimension(mm)	1750*1400*1780	2430*1720*2480	2880*2180*2570	3350*2300*2660	3800*3300*3250
Weight(kg)	2800	5000	7000	8000	11500

Product Details
01 Chamber Structure
The ram suspension and guide rail are integrated on the side of the chamber, and the bottom of the chamber is flat to reduce the cost of wearing parts.
02 Hydraulic Mechanics Screen Changer
The hydraulic system could achieve fast screen replacement and short-time maintenance through automatic opening and closing.
03 Customized Spindle Rotor
The spindle rotor adopts different designs in accordance with different materials. The rotor knife can be used symmetrically.
04 External Bearing House
The bearing house was installed outside the cabinet, sealed by a rubber ring to prevent the crushed material into the bearing box, and ensure a longer service life.

Application Range
Hot Sales Product
About Us
Company Profile
Wobide is one of the most professional solid waste recycling machinery manufacturers in China. Started in 1995(Taizhou Changda Machinery Co., Ltd.), we have over 25 years of experience in R&D and manufacturing mid-to-high-end solid waste recycling equipment. Our products have ISO9001 and CE certificates. At present, we mainly have four series of products: shredder, plastic crusher, plastic recycling and washing line, plastic granulator, and auxiliary equipment. Meantime, we also provide customized service. Our products are widely used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic lumps, household appliance shells and inner tanks, plastic pipes, plastic containers, waste paper, straw, wood, urban household garbage, medical waste, electronic waste, and waste metal, etc. The products are exported to more than 40 countries and regions including Europe, America, Japan, and South Korea.
