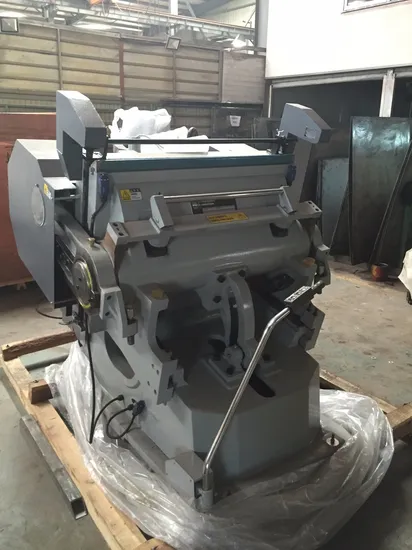

Heating Creasing and Die Cutting Machine (Ml-1100xj)

Product Description

Use: The Series against professional plastic films and etc. Plastic materials, To Die, indentation better.
ML-1100XJL Hot-Cutting Creasing and Cutting Machine
1)High strength due to one piece casting by using top-ranking material for machine body.
2)Single plate electromagnetic clutch is sensitive and reliable safety
3)Operational height is reasonable arranged. The opening angle of moving bed is optimum
4)Single pressing, continuous pressing, adjustable delay pressing available
5)Reliable performance of safety protection system
6)Electrical apparatus is designed in conformity with IEC standard safety system.
Differences between "Tiehu" brand and "Ao'er" brand Creasing and Die Cutting Machine:
1)High intensity integral casting
2)Steel rod
3)Integral main shaft cover with Structure Optimization of QSn6.5-01 tin bronze
4)Use spline construction for first shaft, second shaft and gears
5)Imported bearing and electrical apparatus inside
6)With centralized oiling pump(Manual or Automatic) with oil distribution System
7)Air clutch available
8)Safety adjustable rod available(patent products)
9)Infared safety protection system available

Model	chase inner = size	Max. rule length	Speed	Motor power	Machine weight	Overall dimension	Power
ML-1100XJ	1100*800mm	≤ 37m	20± 2 strokes/min	4kw-6H	5100kg	1950*2100*1750MM	6kw
