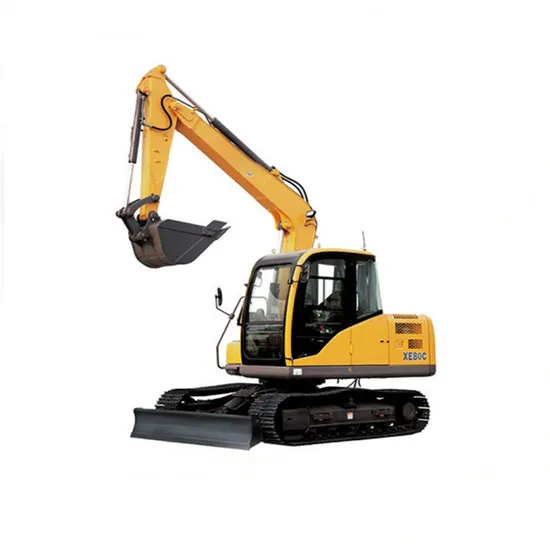

8 Ton Smallmachine Crawler Excavator Xe80c
| US$30,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Xe80c
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
CE
Condition
New
Operating Weight
7425kg
Rated Power/Speed
60/2200 Kw/Rpm
Total Displacement
3.3L
Maximum Digging Height
7167mm
Maximum Dumping Height
5100mm
Maximum Digging Depth
4140mm
Min. Slew Radius
1815mm
Transport Package
Nude Package
Specification
6150*2230*2685 mm
Trademark
Liuzhou
Origin
China
HS Code
8429119000
Production Capacity
1000
Packaging & Delivery
Package Size
615.00cm * 222.00cm * 262.00cm
Package Gross Weight
7425.000kg
Product Description
8 Ton SmallMachine Crawler Excavator Xe80cProduct Description
* Reinforced boom,arm and bucket to ensure powerful digging force in harsh conditions.
* Full open hood is easy to troubleshoot the engine and other parts.
* Optional break hammer and pipeline.quick coupler, rotary driller,hydraulic vibrating tamper are available.
* The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
* The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Product Parameters
| Model | XE80C | ||
| Bucket capacity | m3 | 0.34 | |
| Standard bucket width | mm | 722 | |
| Operation weight | kg | 7,425 | |
| Dimension(in transportation) | Overall length | mm | 6,155 |
| Overall width | mm | 2,220 | |
| Overall height | mm | 2,618 | |
| Min. clearance | mm | 392 | |
| Engine | Model | B3.3 | |
| Total displacement | L | 3.3 | |
| Rated output power | KW/rpm | 60/2200 | |
| Digging performance | Max. digging height | mm | 7,167 |
| Max. dumping height | mm | 5,100 | |
| Max. digging depth | mm | 4,140 | |
| Max. vertical digging depth | mm | 3,218 | |
| Max. digging radius | mm | 6,375 | |
| Boom deflection angle | ° | | |
| Min. slew radius | mm | 1,815 | |
| Min. rear slew radius | mm | 1,770 | |
| Bucket digging force | kn | 53.6 | |
| Track type | Steel | ||
| Track width | mm | 450 | |
| Travel System | Track length | mm | 2,752 |
| Wheel base | mm | 2,119 | |
| Track gauge | mm | 1,700 | |
| Travel speed (Gear I/II) | km/h | 4.2/2.7 | |
| Gradeability | % | 70 | |
| Slew speed | rpm | 12 | |
Contact
Send Message or Chat Now for Best price
Damon Han/Sales Manager
Goldzim Construction Machinery(Qingdao)Co.,Ltd.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
