Pet 300kg Waste Plastic Bottle Recycling Washing Machine Production Line

Product Description

PET 300kg waste plastic bottle recycling washing machine production line
Product Description

PET bottles recycling description:
It is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
This unit is mainly for PET (bottle) flakes: the labels and bottle caps are automatically separated, then after being washed, dewatered and dryed, the water content will be very low, and PP/PE film after being washed can be directly granulated (water-ring pelletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
3.We professionally manufacture plastic machinery and waste plastic washing production lines, such as PET (bottle) flakes washing lines, PP/PE waste plastic film washing and granulating/palletizing production lines, pipes and shape pipes production lines, and various auxiliary machines. Our products are more reasonable in design, more excellent in processing and more durable in usage.
4.Dewater mode: According to the material choice of different dewatering methods, please contact with our company, we will recommend the most suitable equipment for you
5. Electrical parts: Schneider contactor, RKC temperature controllers etc.
Working Flow (1000kg/h advanced system)
--- Belt conveyor: feeding material, If too much scrap irons, metal detector may be needed.
--- Label separator: remove and separate labels from waste bottles.
--- Sorting belt: sorting out remain labels manually, selecting out different color and Non-PET bottles.
--- Belt conveyor: feeding material.

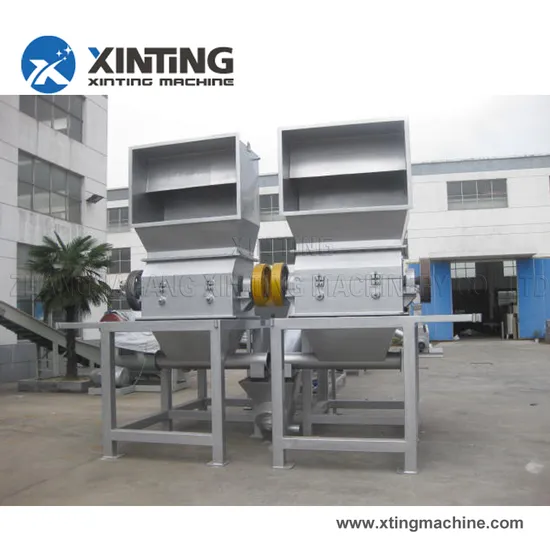

--- S-series crusher: with water, cut plastic bottle into small size.
--- Screw loader: load bottle flakes into the next step.
--- 1st floating washer tank: washing out the floating caps, rings and dirty.
--- Screw loader: load bottle flakes into the next step.
--- 1st high speed horizontal friction washer machine: with high speed friction washing out dirty.
--- Hot washer tank: with hot water washing to remove oil, glue and dirty.
--- Screw loader: loading out material with inverter to control speed.
--- 2nd high speed friction washer dewatering machine: with high speed friction washing out dirty and remove chemical water.
--- 2nd floating washer tank: washing out the floating caps, rings and dirty.
--- Screw loader: load bottle flakes into the next step.
--- 3rd floating washer tank: washing out the floating caps, rings and dirty.
--- Screw loader: load bottle flakes into the next step.
--- Dewatering machine: remove the dirty and water from the material.
--- Hot air drying system: drying the bottle flakes.
--- Zig-Zag air classifier: remove the fine dust and final labels.
--- Storage hopper: collect the clean material.
--- Control cabinet: Used to control the whole line (Schneider, Siemens, etc.)
Remark: We also have metal detector, trommel/roller seperator, blade sharpener,etc. for optional choice.

Product Parameters

Pet bottle recycling line can be customized according to the raw material and customer requirement Product

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(m)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm
