3 Axis Horizontal Precision CNC Deep Hole Drilling Machine Dh-2016 for Metal Molds

Product Description

Drilling represents the cornerstone of machining operations and stands as a fundamental process widely utilized across various sectors. Traditional drilling equipment, such as bench drills, milling machines, and radial drills, once restricted laborers to repetitive tasks, often compromising quality and safety. These limitations, coupled with the pressures of efficiency and processing constraints, posed significant challenges for manufacturers and operators alike. With the dawn of the CNC era, the revolutionary CNC deep hole drilling machine has transformed the landscape entirely. This avant-garde technology liberates labor from monotonous manual operations and deftly overcomes the hurdles of deep hole processing. It elevates drilling to new heights by achieving the quality of conventional machinery in drilling, enlarging, and expanding while enabling automatic chip removal, CNC precision positioning, and autonomous processing in a single seamless operation.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The cutting-edge precision CNC deep hole drilling machine crafted by our company is adeptly designed to handle a diverse array of workpieces requiring deep hole processing:
√ Die & Mould Industry: Efficiently processes water transport holes, center holes, hot runners, guide roller holes, and more.
√ Automotive Industry: Excels in deep hole processing for components like cylinder heads, crankshafts, hydraulic tubing, and plunger bushings.
√ Oil Pump & Lubricating Nipple Industry: Specializes in deep hole machining for oil-injection gas parts, nozzle valves, plunger bushings, and other critical components.
√ Textile Machinery Industry: Masters mesopore processing for various spindle types, ensuring precision and quality.
√ Medical Equipment Industry: Precisely handles axial processing in materials such as titanium alloys and stainless steel, meeting stringent medical standards.
√ Mining & Oil Machinery: Delivers comprehensive deep hole processing for piston rods and cylinder walls, enhancing operational efficiency.
√ Electrical Power & Steam Turbine Industry: Facilitates deep hole processing of rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates with unmatched accuracy.

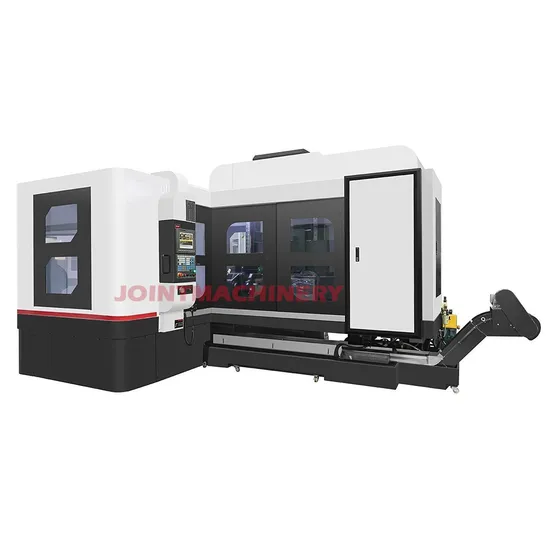

3 Axis Horizontal Precision CNC Deep Hole Drilling Machine DH-2016 for Metal Molds

Model	Unit	DH-2016
Inner diameter of drilling	mm	2.5-35
Max depth of drilling	mm	1600
Table size	mm	2000*1200
X axis travel	mm	1800
Y axis travel	mm	1300
Z axis travel	mm	1600
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	7.5/11
Three axis motor	kw	4.4/4.4/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	15000
Weight	kg	15000
Dimension	mm	5800*4600*3000

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in manufacturing and exporting premier CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering commitment to superior quality and phenomenal service has cultivated trust among our global clientele. By meticulously controlling and enhancing machine quality, we ensure that our products consistently meet and exceed the industry's highest standards. Integrating cutting-edge Taiwanese and German core technologies with advanced production processes, our machines epitomize precision, stability, and durability, adeptly addressing complex, high-demand machining tasks. Our products enjoy widespread acclaim and popularity worldwide, boasting a remarkable presence across Asia, Europe, South America, and North America. Through strategic partnerships with international clients, we have fostered long-lasting collaborations that generate substantial business value, driving success across borders.
