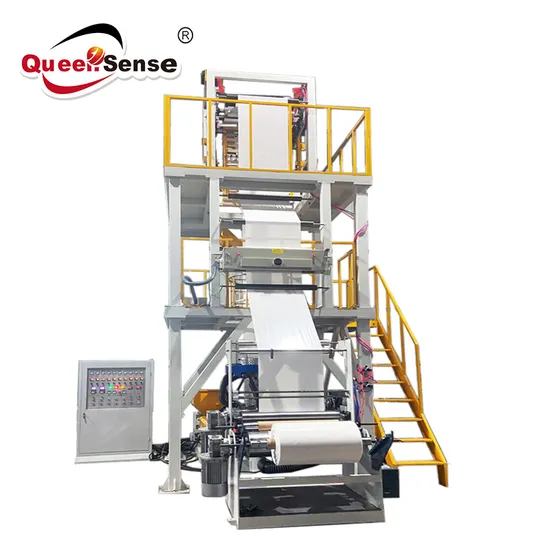

Factory 25-80kgs 2.5t PE Nylon HDPE Blown Extruder Plastic Film Blowing Machine Sj-A50/55/60/65
| US$7,800.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-A50/55/60/65
Maximum Folding Width of Film
1200mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Non-Computerized
Machine Weight
2.5t
Certification
CE
Film Wide
100-1200mm
Film Thickness
0.008-0.15mm
Output
25-80kgs
Material
HDPE&LDPE
Screw Number
60
Film Size
1200
Warranty
One Year
Function
Blowing
Rewinder
Single or Double
Film
Bubble Film
Transport Package
Sea Worthy
Specification
CE
Trademark
QUEENSENSE
Origin
China
HS Code
8477309000
Production Capacity
25-80kgs
Product Description
Performance Introduction:Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrided and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones. Application:
It is used to blow low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic films and other films, and is widely used in civil and industrial package such as food, clothes, garbage bags and T-shirt bags.
Optional:
1)Automatic suction machine
2)Air compressor
3)Quick screen change
4)Rotary die device
5)Twin-station winding-up machine
6)Automatic lifting
Main technical parameters:
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of screw | φ50 | φ55 | φ65 | φ65 |
| Lay-flat width of film | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Thickness of single film face | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max. extruding capacity | 35 | 50 | 65 | 80 |
| Length-diameter ratio | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main machine | 11 | 15 | 18.5 | 22 |
| Power of traction motor | 1.1 | 1.1 | 1.5 | 1.5 |
| Heating powe | 15 | 17 | 23 | 25 |
| Overall dimensions | 4800 x 1900 x 4100 | 5500 x 2100 x 4700 | 6500 x 2300 x 4900 | 6500 x 2500 x 5600 |
| Weight | 1.5T | 2T | 2.3T | 2.6T |
