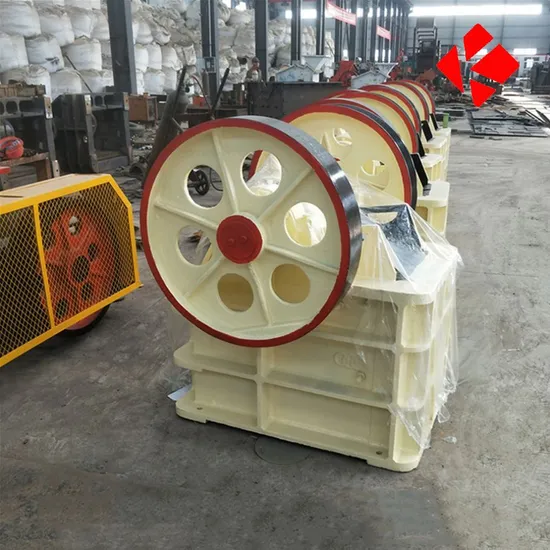

Limestone Cobblestone Graystone Old Mining Rock Jaw Crusher 500X750 Machine

Product Description

Product Description Jaw crusher machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways and other fields.
Working Principle PE, PEX series Jaw Crusher is large-scale tilting complex style, widely used in mining, smelting, construction, highway, railway, water conservancey and chemical industry and many other industries, dealing with large particle size, compressives strength of not more than the various ore 320Mpa and the rough rocks or brken pieces of work. PE series for the rough-breaking, Pex series used to the small and thin break.
PE, PEX series Jaw Crusher is a motor-driven through the motor pulley from the Triangle and the groove-wheel-drive eccentric shaft, so that by moving the jaw is scheduled to make a reciprocating motion trajectory, which will enter the fixed jaw plate, the activities of the jaw plate and while the composition of the broken shield material to be broken cavity, and through the lower part of the neting material from the mouth will be finished.
Machine Parameters

Model	Feed opening (mm)	Max feed size(mm)	C.S.S (mm)	Capacity (t/h)	Power (kw)	Overall dimensions (mm)
PE250*400	400*250	200	20-50	5­-20	15	1430*1310*1340
PE400*600	400*600	350	40-100	15-60	30-37	1700*1732*1653
PE500*750	500*750	425	50-100	40-110	45-55	2035*1921*2000
PE600*900	600*900	480	65-160	90-180	55-75	2290*2206*2370
PE750*1060	750*1060	630	80-140	110-230	90-110	2655*2302*3110
PE900*1200	900*1200	750	95-165	220-450	110-132	3800*3166*3045
PE1000*1200	1000*1200	850	200-300	280-560	110-160	5350*4280*3050
PE1200*1500	1200*1500	1020	150-300	400-800	160-220	6380*5310*3710
PE1500*1800	1500*1800	1200	210-360	520-1100	280	7460*6235*4249

Product Details
Application
Product Show
Crushing
