Disposable Food Container Paper Box Making Machine, Paper Lunch Box Making Machine Chj-D120
Basic Info.
Model NO.
CHJ-D120
Speed
30-40 PCS/Min
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Logo Printing
Without Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
1 Year
Transport Package
by Strong Wooden Package
Specification
2800x1100x1700 mm
Trademark
Koten
Origin
China
Product Description

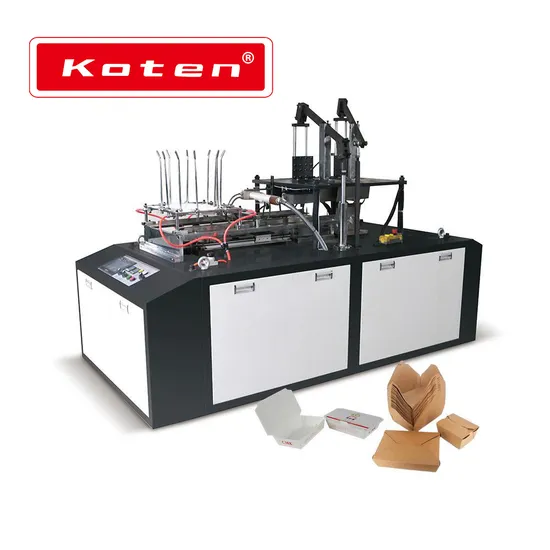

Paper Lunch Box Making Machine(Heating Seal) CHJ-D60/120
CHJ-D paper lunch box forming machine is an ideal choice which adopts mechanical driving system to produce lunch box, take away noodle box, and food trays. The main features of the new type: 1.The machine is controlled by mechanical system, no need air compressor. It saves our customer at least 6 KW power when machine is running. 2.The hot wind blow from the heating tube, it makes the PE coated papers stick together more tightly. 3.Besides the mechanical system, the machine on one line producing very fluently: paper feeding, heating, forming, pulling out and collecting. So the machine speed can be double.
| Type | CHJ-D 60 | CHJ-D 120 |
| Max Forming Depth | 60 mm | 120 mm |
| Production Capacity | 30-45 pcs/min | 30-40 pcs/min |
| Suitable Material: | 200 - 400gsm single or double PE coated paper | |
| Total Power: | 4 KW | 6 KW |
| Total Weight: | 1250 KGS | 1750 KGS |
| Overall Dimension: | 2200x1100x1700 mm | 2800x1100x1700 mm |
| Power Source | 380V 50HZ | |
| Item | Brand | Origin |
| Touch screen | Inovance | China |
| Inverter | Inovance | China |
| Electric relay | Schneider | French |
| Powertransformer | Meanwell | China |
| Microrelay | C-lin | China |
| Servomotor | Inovance | China |
| Driver | Inovance | China |
| SSR | Autonics | Korea |
| AC contactor | Schneider | French |
SAMPLE IMAGE
