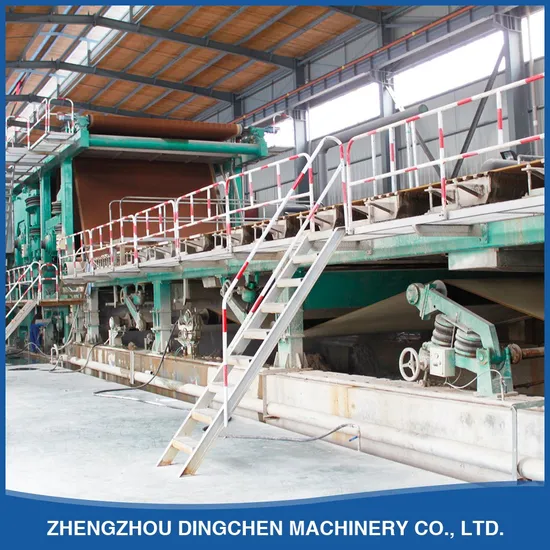

Fourdrinier Kraft Paper Making Machine and Fluting Paper and Corrugated Paper Production Line

Product Description

(3200mm) Kraft Testliner Paper Machine with High Speed
I.Technical parameter

1. Raw material	recycled paper, virgin wood pulp
2. Output paper	fluting paper, kraft paper, carton paper, corrgated paper
3. Output paper weight	90-130g/m2
4. Net paper width	3200mm
5. Capacity	150 tons /day
6. Wire width	3750mm
7. Working speed	300m/min
8. Designing speed	350m/min
9. Rail gauge	4300mm
10. Drive way	A/C inverter speed control, sectional drive.

II. The main structure with spec

1. Wire part
25 m fourdrinier table covered with stainless steel board, air loaded head box made of stainlesssteel. This part includes 1 pc of 650mm×3750mm×4300mm couch roll, 1 pc of 800mm×3750mm× 4300mm vacuum roll, and 1 pc of 550mm×3750mm×4300mm paper leading roll.

2. Press part
2 sets of press rolls in large diameter. Top roll: 2 pcs of natural marble roll at 1250mm×3750mm×4300mm. Bottom roll: 2 pcs of rubber roll at 1250mm×3750mm×4300mm, rubber shore hardness, with pneumatic pressure device, pneumatic felt adjusting device, and electric felt tightening device.

3. Dryer part
30 pcs of 1800mm×3750mm×4300mm alloy dryer cylinder with 30 pcs of blade and dry felt device. The cylinders are placed at 10 +10 + sizing machine + 10. Driving by closed gear box, with lubricant supplying system.

4. Winding part
1 set of 3200m horizontal pneumatic winding machine with cylinder 1100mm×3750mm×4300mm. With double-roll hard calendaring machine
Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
