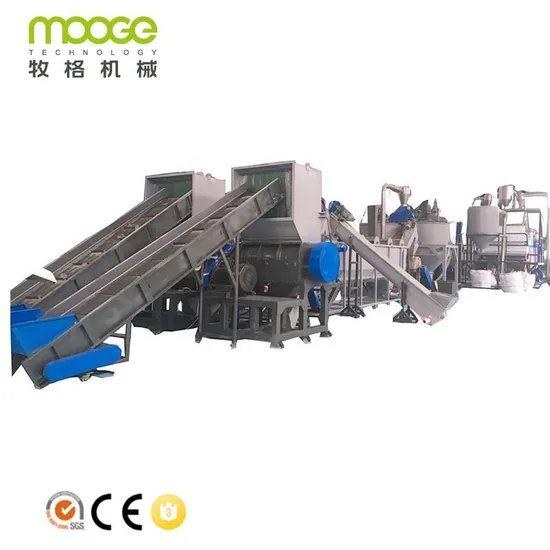

Waste PET plastic bottle washing recycling drying production line

Product Description

PET Bottle Plastic WashingRecycling Equipment
Pet bottle recycling machine is widely used to treat waste plastic, such as PET/PVC/ABS bottle, water bottles, cola bottle and PET plastic scrap broken into flakes. Pet bottle recycling line is a crushing, washing, drying line. PET flakes are mainly used for the fiber production and other related PET products. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad. this line can be displayed "L" or "U" shape according clients' workshop.
Component List:

SN:	Item name:	Function
1	Conveyor belt	Feeding material
2	Label remover machine	Remove and separator the labels from bottles
3	Sorting table	Sorting out remain labels manually Selecting out different color bottles and non-PET bottles
4	conveyor	Feeding material
5	crusher	Crushing bottle into Flakes
6	Screw loader	Loading material
7	Floating washing tank	Washing out the floating caps,rings and dirty
8	Friction washer	With high speed Friction Washing out dirty
9	Screw Loader	Loading material
10	Hot washing tank	With Hot water washing to remove glue and dirty
11	Screw Loader	Loading out material with inverter to control speed
12	Horizontal friction dewater	Remove the humidity from the flakes
13	Floating washing tank	Washing out the Floating caps, rings and dirty
14	Floating washing tank	Washing out the Floating caps, rings and dirty
15	Screw Loader	Loading material
16	Horizontal Dewatering machine	Remove the humidity from the flakes
17	Hot Air Drying system	Drying the flakes
18	Silo	Collecting the flakes
19	Electric control panel	Used to control the whole Line

Main Technical Date

Product capacity	MT-300	MT-500	MT-1000	MT-1500	MT-2000	MT-3000
Capacity	300kg/h	500kg/h	1000kg/h	1500kg/h	2000kg/h	3000kg/h
Needed worker	3-4	5-6	7-8	9-10	10-12	13-14
Installed powder	210kw	230kw	300kw	370kw	450kw	500kw
Water supply	2-3ton/h	3-4ton/h	5-6ton/h	7-8ton/h	9-10ton/h	11-12ton/h
Final product: 1-Flake size: 12-14mm 2-moisture content: ≈0.01% 3-PVC content less than 100ppm

Packaging & Shipping
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Our Services
1.Pre-sale: we given client the details technician offer, sign the sales contract etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always update the new technology to every customer
FAQ
1.How to Choose proper Products you want?
Please tell us as detail as what you want
What's your raw material it is
What's the final products you want to produce
What capacity you want it performance
2.How to Control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment
