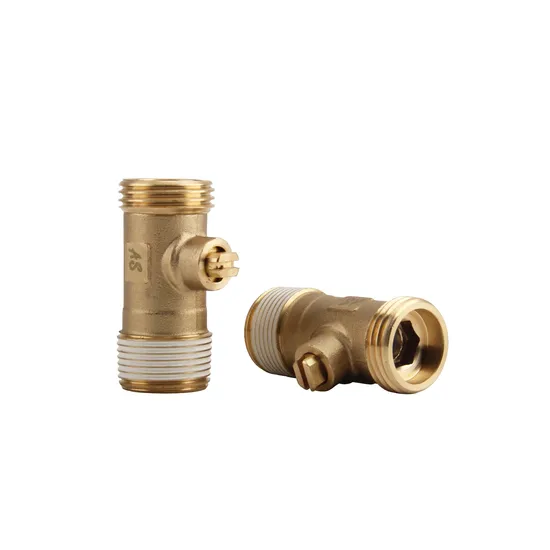

1-1/4", 2-1/4", 3′′, 3-1/2" Water Heater Brass Ball Drain Valve with Limit Switch

1-1/4", 2-1/4", 3′′, 3-1/2" Water Heater Brass Ball Drain Valve with Limit Switch

US$1.90-3.50 1,000 Pieces (MOQ)

Basic Info.

Model NO.
WBDV-001
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Household Usage
Connection Type
3/4′′male Thread Inlet, 3/4′′ Hose Thread Outlet
Transport Package
Carton_Crate
Specification
1-1/4′′, 2-1/4′′, 3′′, 3-1/2′′
Trademark
CS or OEM
Origin
China
HS Code
8481804090
Production Capacity
250000pieces/Year

Product Description

Product Description
Heavy duty brass straight ball valves for water draining of water heater
Product Features
Material HPb 59-1
Finish Sand Blasting+Natural color
Manufacturing technology Hot forging+machining
Brand OEM
Package Carton+crate or customized
Payment terms T/T or L/C
Heavy brass body ensures strength and reliability Corrosion resistance and durable service life MIP to Hose, One-piece Body, Double O-ring Packing, Blowout-proof Stem, PTFE Seats 3/4″Male Thread Inlet, 3/4″ Hose Thread Outlet Pipe threads comply with ANSI B1.20.1 Hose threads comply with ANSI B1.20.7 Technical Data
Size: 1-1/4'', 2-1/4'', 3'', 3-1/2'' Material: Brass HPb57-3
Designation Chemical Composition %
Cu Fe Pb Ni Zn Fe+Sn Others total
HPb57-3 56.0~59.0 0.8 2.0~3.5 0.6 Remainder <2.0 ≤1.2
Production process: Forging + machining Surface: natural color Packing: carton + wooden crate MOQ:2000pcs Lead time:4~6 weeks depending on order quantity Warranty:2 years After-sale Service: Online technical support, On-site Installation Brand: OEM or custom-made as per drawings provided. Detailed Photos
Application
Connects with a garden hose and fits directly into the water heater for easy draining.
