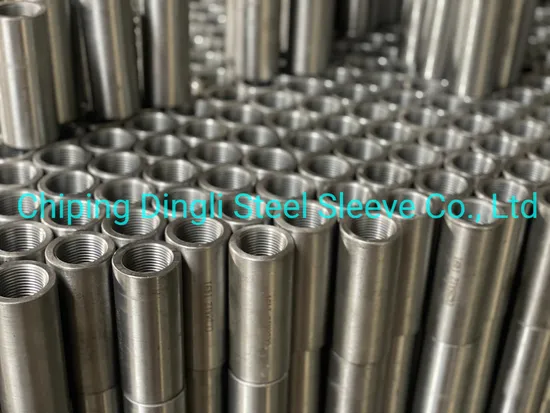

Threaded Rebar Mechanical Connector Coupler in Building Material Rebar Coupler

Product Description

Chiping Dingli Steel Sleeve Co., Ltd Add: Chiping, Liaocheng City, Shandong Province, Liaocheng, Shandong, China Product Parameters Standard rebar couplers made by raw material 45# carbon steel with competitive price and divided into standard couplers, positional rebar couplers, and transition rebar couplers.

Name:	Thread Rebar Couplers Standard Type
Used for Rebar:	HRB400/Grade 65/ and so on with rebar yield strength same as 500Mpa or lower than that.
Raw Material:	S45C -yield strength 420Mpa, Tensile strength: 600-650MPa
Size:	16mm/18mm/20mm/25mm/28mm/32mm/36mm/40mm
Packing:	By bags and pallets packing, or wooden case packing as required (25KG smaller packing, 1700KG per pallet)
Sample:	Free existing samples for checking dimension and quality
Production time:	15-40 days based on different quantity after receive the prepayment
Shipping Port:	Xingang,Tianjin Port, Shanghai Port, China.
Payment Terms:	TT / LC
Certificate:	ISO/ CE

SIZE (mm)	Out Diameter (mm)	Length (mm)	Pitch (mm)	N.W (KG)	PACKING IN ONE BAG (NOS)	1 BAG WEIGHT (KG)	Approvals/ Certificate
16	24	42	2.5	0.092	250	23.00	CE / ISO
18	27	45	2.5	0.136	200	27.20	CE / ISO
20	30	50	2.5	0.159	132	20.98	CE / ISO
22	33	54	2.5	0.21	121	25.41	CE / ISO
25	38	62	3.0	0.34	80	27.20	CE / ISO
28	42	68	3.0	0.46	56	25.76	CE / ISO
32	48	76	3.0	0.633	42	26.58	CE / ISO
36	53	84	3.0	0.905	27	24.43	CE / ISO
40	59	95	3.0	1.16	25	29.00	CE / ISO

1. Standard rebar couplers Introduction
Standard rebar coupler belongs to Rolling technology, it is a parallel-thread mechanical splicing system used for the 16mm to 40mm reinforcing bars mechanical connections. This system is first peeling the rebar rib and then doing thread by cold rolling, this technology can meet with China standard of JGJ107-2010, USA standard of ACI318, UK standard of BS8110, VN standard of TCVN8163, and other international standards. The couplers can be divided into standard couplers with all right-hand thread, and also positional rebar coupler with one side left-hand thread another size right-hand thread, also it has transition couplers which two sides have different diameters. Also, this coupler has a competitive price over super couplers and is suitable for little lower rebar grades such as HRB400 or HRB500 rebar, it has full sizes from 16mm to 40mm.
2.45# steel carbon steel rebar couplers Features and advantages
a.Saving cost and easy operation than the lapping of rebar
b.One time loading can finish the rib peeling and thread rolling together.
c.Single step process, only one machine, one operator.
d.Assemble by visual inspection
e.Standard ISO parallel Metric Thread designs.
f.Used for many kinds of connections for a position or transition couplers
CPDL Rebar Coupler China Steel Rebar Coupler Manufacturers OEM/ODM On-demand Customized Rebar Splicing Coupler Wholesale Thread Rebar Couplers Standard Type
Product Description

FAQ 1. Q: Are you a trading company or manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the products are in stock.
It will be 15-30 days if you want to customize the products
3. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, PayPal, ****** Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
4. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge, but clients do not need to pay the cost of freight.
