Factory Direct Big Welding Range 1600-1800-2000mm HDPE Pipe Welding Machine Butt Welder for Gas Water Pipeline

Product Description

Model		WP2000A
Suitable materials		PE, PP, PVDF
Range		1600-1800-2000 (mm)
Power supply		380V, 3PH
Frequency		50 Hz
Total power		94.7KW
Heating plate		80 KW
Planing tool		9.2 KW
Hydraulic station		5.5 KW
Max.Pressure		0-16MPa
Hydraulic oil		L-HM46
Max.Temperature of heating plate		270ºC
Temp.Deviation in Surface		±10ºC
Total Weight		13000kg
Basic Frame-1	plywood	1910*2400*2020mm
Basic Frame-2	plywood	850*2230*2020mm
Planing tool&heating plate	plywood	2450*1020*2450mm
Hydraulic station	plywood	1050*550*1020mm

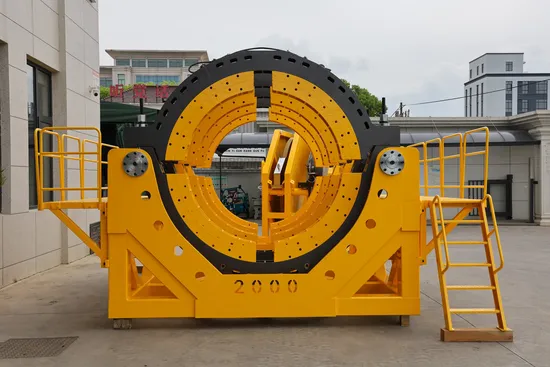

Basic Frame: Featured by
*Italy DNP quick coupler
*Chromated hydraulic cylinder made of
1045(ASTM)/S45)(JIS)/C45(DIN) steel
*Chromated integral shaft made of
1045(ASTM)/S45C(JIS)/C45(DIN) steel
*Steel plate cutting clamp with sandblasting &spraying treatment
*Base made of Q235 steel with spraying treatment Hydraulic station:Featured by
*Fully enclosed housing with vents can prevent dust and dirt from entering
*380V asynchronous motor
*CHNT electricity leadkage protection switch
*Data logger(optional)500V/100A electric meter
*Ø100mm presure meter
*Relief valve, regulating valve, maintaining valve Heating Plate:
Featured by*Bakelite handle with high insulating property andthermal insulation*Thermocouple temperature sensor*Heating element*T**lon Coating imported in Japan*Aviation plug Planing Tool:Featured by
*HSS blade with double edge
*Casting aluminum trimmer plate, durable and anti-corrosion
*Casting aluminum frame of motor with good heat dissipation performance
*Motor with pure copper wiring
To help customers succeed in the field of plastic pipe jointing, WELPING had been focusing on thermoplastic welding equipment developing, manufacturing and selling for more than 15 years. We aim to bring industrial level design, performance and quality together, to help you build reputation. To suit different welding applications and market requirements, we are offering different level items represented by brand Deruibao,YOVIDA and WELPING . Brand Deruibao enjoys a high reputation in the market of China, benefiting from the steady product quality and performance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and ODM requirements. At the same time, we are improving and updating products line to better suit field requirements. WELPING knows the importance of fast delivery for our customers. To better shorten production lead time, we consolidate critical production process into self-management,like die casting, metal fabrication and process, powder coating etc. Standard items andlight-OEM items, WELPING can finish in around 10-15 days.
1. PaymentWe accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.2. Lead time Standard items and light-OEM items, WELPING can finish in around 10-15 days.3. Warranty 18months from delivery date. We take full responsibility for parts with quality problems and provide them for free.4. Customized designOur experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.5. About agency businessWe welcome sincere and influential customers to discuss cooperation matters with us.
