High Quality 3 in 1 CNC Handheld Fiber Laser Cutting Welding Cleaning Machine Price

Product Description

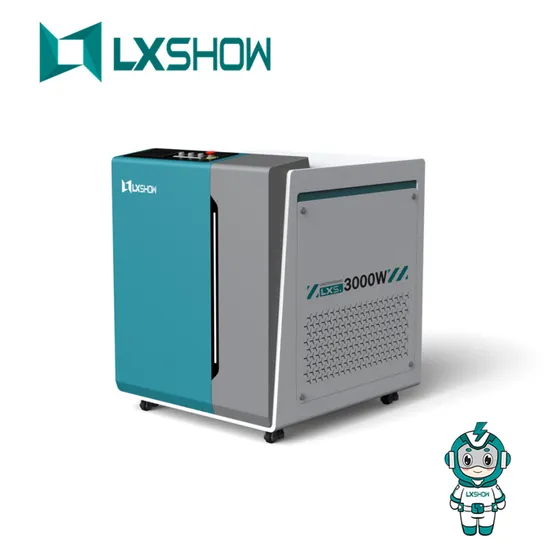

High Quality 3 in 1 Fiber Laser Cutting Welding Cleaning Machine
(Power can be customized according to demand)
please contact us for more details
Character:
1.A machine to achieve cutting, welding, cleaning functions.
2.HW three-in-one function head HW-BDH-20-60150 Double swing head cleaning width 50mm
3.Au3tech 3-in-1 feature head HW970 Pendulum cleaning width 80mm
4.Relfar 3-in-1 function head FWH20-S10A pendulum
5.Change the focusing mirror when cleaning and the nozzle when cutting.

Technology Parameter:

Working life of fiber module	More than 100000 hours
Laser machine controller	Au3tech/HW/Ralfa/Qilin/WSX/Chaoqiangweiye(Optional)
Wobble welding head	Single wobble/Double wobble
Supply voltage	Single-phase 220V±10%, 50/60Hz AC
Machine power consumption	11.5Kw(including chiller)
Setting up the environment	Flat, no vibration, no impact
Working temperature	0°C~40°C
Working environment humidity	≤80%
Power adjustment range (%)	10-100 (gradient adjustable)
Laser Source Repeat frequency (KHz)	1000-5000 (gradient adjustable)
Beam quality	1.3m2
Laser wavelength	1070nm
Focal length (mm)	150
Cooling method	Water cooling
Size	1100mm × 700mm × 1150mm
Weight	270Kg
Fiber length	10 meters
Welding head weight	1.5Kg
Scanning/Swing frequency	20-150Hz
Mobile mode	Handheld
Auxiliary gas	99.99% argon or nitrogen
Auto wire feeder	Included
Spot adjusting range	0-5mm
Repeating Precision	0.01mm

Our Customers:


Offline Exhibition:



Certification Display: About machine quality, we have get the third party certification, and about the machine, we have 3 years machine warranty, if you need, we always here.
Company Information: Jinan Lingxiu Laser
is established in July 2004 ,owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.


Our Team:
FAQ:
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don't know which one is suitable for me ?
A2:Please tell me
1) Your materials.
2) The thickness of your materials.

Q3:Payment terms?
A3:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don't know how to use after I receive or I have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge. The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
