Soybean Protein Concentrate Equipment/Soybean Protein Isolate Machine/Soybean Protein Concentrate Turnkey Plant/Soybean Protein Turnkey Plant

Product Description

Model No.: 6000-80000t/a
Product Description Soy Protein Concentrate Production Line

Soy Protein Concentrate Production Line (annual capacity: 50,000 tons)
1. Raw Materials:
low-temperature soybean flakes ( Soya White Flake )
2. Products:
food grade or feed grade soybean protein concentrate (SPC)
3. By-Products:
soybean syrup
4. Applications
4.1 Food grade SPC is usually used as additives of flour-made food and meat products. It is also applied for production of health care products, which contain about 70 percent protein.
4.2 Feed grade SPC is applied as feed additives in particular, which are put in fodders for baby pigs, aquatic livestock, calves or pets.
5. Process Description
In our production line, edible alcohol is used to extract and separate water-soluble components (mainly soluble sugars) from low-temperature soybean flakes. The resulting soybean product will be extruded, smashed, desolventized, dried and superfinely milled, thus obtaining soybean protein concentrate. The whole production process won`t generate water pollution and air pollution, which is environmental friendly. Our SPC production process will become the prominent method for production of SPC in the future.
6. Process Workflow

7. Major Devices

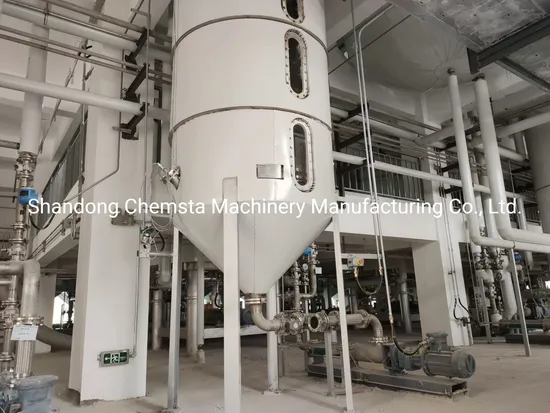

Extractor, extruder, horizontal desolventizer, vertical dryer, evaporation and concentration system for syrup, condenser for recycle of ethanol steam, recovery system for exhaust gas, protein conveying and cooling system, protein smashing and packing system, rising conveyor and other auxiliary devices.

8. Production Capacity: 20t/d-250t/d SPC
9. Representative Clients

We also provide the following project and equipment:
Oilseed Pretreatment Project
Oilseed Pressing Project
Oil Extraction Project
Oil Refining Project
Cottonseed Miscella Refining Project
Low Temperature and Edible Soybean Meal Project
Soy Protein Concentrate Project
Soy Protein Isolate Project
