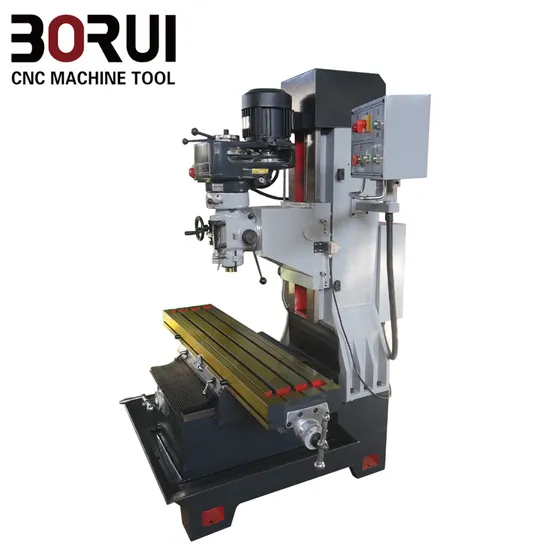

X7130 China Universal Small Bed Type Milling Machine

Product Description

X7130 China Universal Small Bed Type Milling Machine Product Application
Bed type vertical milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.
The milling head moves upwards and down wards along the column, the worktable can carry heavy load.The miller can make high precision which is suitable to process high-duty cutting.
NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
The main specification :

Model			Unit	X7125		X7130
Table size			mm	254x1270	254x1370	305x1370	305x1500
Table longitudinal travel			mm	760	860	880	1000
Table cross travel			mm	535	535	510	510
Milling head vertical travel			mm	405	405	405	405
Distance from Spindle to table			mm	150~600	150~600	150~600	150~600
Milling head	Motor power		HP	3HP	3HP	5HP	5HP
	spindle taper			R8	R8	ISO40	ISO40
	Quill travel		mm	127	127	127	127
	Spindle speed	standard: 16 steps	rpm	50HZ:65~4500 60HZ:80~5440
		Optional: Variable	rpm	65~2400		60~3750
	Quill power feed		mm/rev	0.04/0.08/0.15
Package size	One machine/1 package		mm	1800x1500x2400		1850x1500x2400
	two machines/1 package		mm	2200x1500x2400		2250x1500x2400
Gross Weight	One machine		kg	1900	1900	2000	2050
	Two machines		kg	3900	3900	4000	4100

Standard Accessories:
Draw bar, Tool box, Tools, Oil collecting plate, Auto.Lubicate pump,
Coolant pump, Table guard, Working lamp.

Optional Accessories:
Digital readout, Power feed, Collet chuck and collets,
Clamping kits, Machine vise, Inverter milling head,
Variable speed milling head, Air power draw bar.
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Product Details

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
