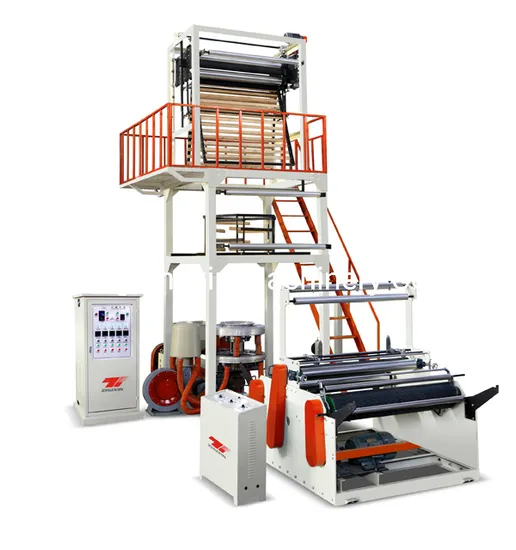

Automatic High Speed LDPE/HDPE/PE Plastic Extruder Film Blowing Machine Price with Rotary Die Head and Double Winder
| US$7,500.00-25,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-H
Maximum Folding Width of Film
1000mm
Screw Diameter
60mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008
Film Size
Can Make According to Your Demand
Optional Parts
Auto Loader ,Corona Treater ,Screen Changer
Transport Package
Wrapping Film
Specification
CE
Trademark
Changyin
Origin
China
HS Code
84773090
Production Capacity
2000sets/Year
Product Description
| Model | SJ-A45 | SJ-A50 | SJ-A55 | SJ-A60 | SJ- A65 | |||
| Suitable material | HDPE LDPE LLDPE | |||||||
| Film width(mm) | 100-500 | 300-600 | 400-800 | 500-1000 | 600-1200 | |||
| Film thickness(mm) | HD | 0.009-0.05 | 0.009-0.15 | |||||
| LD | 0.02-0.15 | 0.03-0.15 | ||||||
| Max.Extrusion output(kg/hr) | HD | 40 | 45 | 55 | 60 | 65 | ||
| LD | 45 | 50 | 60 | 65 | 70 | |||
| Extruder | ||||||||
| Screw diameter(mm) | φ45 | ф50 | ф55 | Ф60 | ф65 | |||
| Screw L/D length | 28:1/30:1 | |||||||
| Screw material | SACM-645/38CRMOALA | |||||||
| Cylinder material | SACM-645/38CRMOALA | |||||||
| Cylinder cooling | 180x2 | 250x2 | 370x2 | 370x2 | 550x2 | |||
| Driving motor (kw) | 7.5 | 11 | 15 | 18.5 | 22 | |||
| Temperature control | 3 | 3 | 3 | 3 | 4 | |||
| Average power-consume(kw) | 10 | 12 | 18 | 22 | 30 | |||
| Type of die | ||||||||
| Die size | HD | ф60/80 | ф80/100 | ф100/120 | ф100/120 | ф100/150 | ||
| LD | ф100/120 | ф120/150 | ф180/200 | Ф200/220 | ф220/ 250 | |||
| Temperature control | 3 | |||||||
| Air ring | 1 | |||||||
| Air blower(kw) | 1.5 | 2.2 | 3 | 3 | 4 | |||
| Center steady stick | 1 | |||||||
| Take-up unit | ||||||||
| Roller width(mm) | ф165×600 | ф165×700 | ф165×900 | ф165×1100 | ф165×1300 | |||
| Height adjustable type | 800mm | |||||||
| Take-up speed(m/min) | 10-100 | 10-100 | 10-80 | 10-80 | 10-80 | |||
| Take-up motor(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | |||
| Winding unit | ||||||||
| Type | Surface friction type | |||||||
| Winding motor(N.m) | 10 | 10 | 10 | 16 | 16 | |||
| Winding speed(m/min) | 10-100 | 10-100 | 10-80 | 10-80 | 10-80 | |||
| Cover dimension(m) | 5.0×2.0×4.1 | 5.0×2.2×4.5 | 5.5×2.5×5.2 | 5.6×2.8×6.0 | 5.8×2.8×6.3 | |||
