Good Price Hoisting Air Pneumatic Marine Hydraulic 20 Ton Tractor Lifting Winch

Good Price Hoisting Air Pneumatic Marine Hydraulic 20 Ton Tractor Lifting Winch

US$4,350.00-4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
SH Series Double-speed Winch
Type
Well Winch
Driven Type
AC
Speed
Slow
Carrying Capacity
Middle-Level
Tonnage
1T
Reel Number
1
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Model
2jp-7.5
Pulling Tension
8kN
Wire Rope Average Speed
1m/S
Wire Rope Diameter
9.3mm
Diameter(mm)
205
Width(mm)
80
Main Drum Rope Capacity
45m
Electric Power
7.5kw
Overall Dimension(L*W*H)
1210*565*490mm
Weight (Main Engine)
390 Kg
Transport Package
Wooden Case or as Your Requirement
Specification
Rake Mine Winch
Trademark
zhongmei
Origin
Shandong Provice, China(Mainland)
HS Code
8501510090
Production Capacity
500 Sets Per Month

Product Description


Product Description
Introduction of Underground Mining Industrial Explosion-Proof Rake Mine Winchs Mini Metal Ore Tunnel Electric Hoisting Electric Double Drum Scraper Lifting Hoist Winch
Mining Scraper Winch is mainly used for coal mine & other underground mine or open-pit ore handling and filling operations. It is mainly used for horizontal plane transport and slope dumping with small slope angle, but it cannot be used as lifting equipment. The parallel arrangement of electric tweezers is common to the PB series bucket loading machine.
The main components of the electric tweezers are a speed reducer, a main reel, a secondary reel, an operating device, a steel wire for guide and an electric motor. These components are housed inside and outside the housing. The housing is a component with good rigidity, which serves as a protection, support and full load.
Product Parameters
Parameter of Underground Mining Industrial Explosion-Proof Rake Mine Winchs Mini Metal Ore Tunnel Electric Hoisting Electric Double Drum Scraper Lifting Hoist Winch Scraper Winch
P
Item
unit		 Scraper Winch Model
2JPB-7.5 2JPB-15 2JPB-22 2JPB-30 2JPB-55
2JP-7.5 2JP-15 2JP-22 2JP-30 2JP-55

The average tension of the main wire rope is not less than		 N 8000 14000 20000 275000 44000
Average speed Main wire rope ±5%m/s 1.0 1.10 1.20 1.20 1.20

Secondary wire rope		 1.0 1.50 1.50 1.60 1.80

Wire rope diameter		 Main wire rope mm 9.3 12.5 14.0 15.5 18.5
Secondary wire rope 9.3 11.0 11.0 14.0 16.0
reel diameter mm 205 225 280 280 350
Rim diameter mm 350 435 510 510 625
width mm 80 125 160 160 180

Capacity
Main reel		 m 45 80 80 80 100

Secondary reel		 m 45 100 100 110 130
electric motor
model		 YBK-132M-4 YBK-160L-4 YBK-180L-4 YBK-200L-4 YBK-250M-4
Y-132M-4 Y-160L-4 Y-180L-4 Y-200L-4 Y-250M-4
power KW 7.5 15 22 30 55
Rotating speed r/min 1440 1460 1470 1470 1470

Dimensions		 length mm 1210 1525 1600 1650 2070
Width mm 565 660 730 820 1010

height		 mm 490 620 640 700 890

Total weight (excluding skips and pulleys)		 kg 390 660 980 1155 2125

Shaft Sinking Winch
Model JZ10/800 JZ16/800 JZ16/1000 2JZ16/1000 JZ25/1000 JZ40/1000 JZ40/1800
Wire rope Max.
Static tension (KN)		 100 160 160 160 250 400 400
Wire rope Capacity (m) 800 800 1000 1320 1000 1000 1800
Drum specification Diameter (mm) 800 1000 1000 1000 1050 1250 1250
Width (mm) 820 1400 1400 1400 1210 1480 2060
Center height (mm) 900 1050 1050 1050 1326 1500 1500
Wire rope diameter 32 40 40 40 52 60 60
Number of winding layers 8 7 7 8 10 9 10
First layer rope speed Fast (m/min) 5 4.7 4.7 4.7 4.8 5.2 5.2
Slow (m/min) 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Electric motor Model YRT250M2-8 YRT250M2-8 YRT250M2-8 YRT280S-8 YRT280S-8 YRT355S-8 YRT355S-8
Power (KW) 22 30 30 55 45 90 90
Speed (RPM) 730 730 730 723 723 730 730
Voltage (V) 380 380 380 380 380 380 380
Dimensions Length (mm) 2883 3600 3600 5726 3980 4725 4305
Width (mm) 2962 3280 3280 3806 3935 4593 4593
High (mm) 1728 2300 2300 2988 2620 3300 3300
Weight (kg) 7480 11500 11500 18000 14680 35000 3800

Dispatching Winch
Model
specification		 JD-1 JD-1.6 JD-2.5 JD-4
Wire rope static tension KN 10 16 25 40
Rope speed(m/s) Min. 0.433 0.733 1.16 0.95
Max. 1.033 1.399 1.45 1.48
Average 0.733 1.066 1.31 1.22
Wire rope size Wire rope Dia.(mm) 12.5 15 18.5 21.5
Rope length(m) 400 400 500 850
Drum size (mm)
(Dia.*Width)(mm)		 Φ224*304 Φ310*400 Φ620*580 Φ580*600
Total reduction ratio 41 32.5 42.24 32.75
Dimension (mm) 1120*766*727 1435*1217*1255 1830*1794*1390 2200*1965*1425
Weight(with motor)(kg) 542 1370 2500 3750
Flameproof motor Model YBJ-11.4 YBJ-25 YBJ-40 YBK3-280M-6
Power(KW) 11.4 25 40 55
Turn number(r/min) 1460 1465 1470 980
Voltage(V) 380/660 380/660 380/660 380/660

Double-speed Winch
Model JSDB-10 JSDB-12 JSDB-13 JSDB-15 JSDB-16 JSDB-19 JSDB-25 JSDB-30
Fast Slow Fast Slow Fast Slow Fast Slow Fast Slow Fast Slow Fast Slow Fast Slow
Wire rope static tension KN Outer layer Max. 14.5 100 15 120 15 130 18 150 25.4 160 27.8 190 30 250 38 300
Inner layer Max. 22.1 140 22.1 160 29.1 200 30 250 36.6 280 43.4 320 56 390 56 470
Average 18.3 120 18.3 140 22.05 165 23 200 30.5 220 35.6 255 43 320 43 380
Wire Rope speed m/s Max. 1.3 0.2 1.3 0.2 1.3 0.2 1.39 0.2 1.39 0.2 1.6 0.2 1.51 0.2 1.66 0.2
Outer layer
Average 1.075 0.18 1.075 0.18 1.11 0.18 1.235 0.17 1.235 0.17 1.31 0.18 4.145 0.16 1.145 0.174
Drum Size Wire Rope Length m 120 180 180 300 300 500 500 800
Drum Dia.*Width ф430*430 ф430*443 ф435*530 ф470*530 ф510*530 ф545*570 ф545*760 ф650*800
Wire Rope size Dia. 20 22 24 28 28 30 30 30
Structure 6*19
Nominal tensile
strength kn		 1670
Motor Type YBK2-200L1
-6		 YBK2-200L2
-6		 YBK2-200L2
-6		 YBK2-200L2
-6		 YBK2-250M
-6		 YBK2-280S
-6		 YBK2-280M
-6		 YBK3-315S
-6
Power KW 18.5 18.5 22 22 37 45 55 75
Revolution rpm 970 970 970 980 980 980 980 980
Voltage V 660/1140 660/1140 660/1140 660/1140 660/1140 660/1140 660/1140 660/1140
Dimension L*W*H 2540*785*
800		 2540*785*
800		 3182*968*
987		 3260*1060*
1060		 3260*1060*
1060		 3825*1214*
1470		 3875*1274*
1187		 4750*1516*
1512
MM
Weight 2340 2600 3900 4400 5000 5480 7800 8200
(with motor)(kg)

Lifting Winch
Model Drum Max. Wire rope tension KN Wire Rope Max. Length m Wire rope Average lifting speed m/s Electric motor Dimension
mm		 Weight
kg
Diameter mm Width
mm		 The first layer The second layer The third layer Max Dia. mm Breaking pull sum Rotating speed r/min Power KW
JTPB-1.2*1.0 1200 1000 30 170 344 516 20 275 1.88-2.4 967 55-75 4658*2680*1450 10421
JTPB-1.2*1.2 1200 1200 30 203 412 620 20 275 1.57-2.4 967 55-75 4458*2680*1450 9940
JTPB-1.6*1.2 1600 1200 45 215 433 655 26 405 1.56-4 975 95-155 5224*2800*1925 15195
JTPB-1.6*1.5 1600 1500 45 269 542 819 26 405 1.56-4 975 95-155 5524*2800*1925 15678
JKB-2 X1.8P 2000 1800 62 332 670 1013 32 558 2.5 735 200 6410*3234*2600 25560
JKB-2 X1.5P 2000 1500 62 277 557 842 32 558 2.5 735 200 6160*3234*2600 24780
JKB-2.5X2P 2500 2000 83 373 755 1143 40 747 3 740 315 6700*3610*2600 36998
JKB-2.5X2.3P 2500 2300 83 429 867 1312 40 747 3 740 320 7000*3610*2600 39620

Prop Pulling Winch
Model
Parameter		 JH-5 JH-8 JH-14 JH-20 JH-30
Steel wire rope
average static tension (KN)		 50 80 140 200 300
Steel wire rope (m/s)
average speed 		0.17 0.12 0.115 0.118 0.13
Drum diameter*width (mm) 276* 372 280* 230 400* 317 430* 530 550*560
rope capacity (m) 80 100 130 170 220
Steel wire
rope		 diameter 15.5 17 21.5 24.5 30
construction 6* 19 6* 19 6* 19 6* 19 6* 19
nominal extension strength
(Mpa)		 1550 1550 1550 1550 1570
Explosion proof
motor		 Model YBJ7.5-4 YBK2-160M-6 YBK2-200L1-6 YBK2-200L2-6 YBK2-280S-4
Power (KW) 7.5 7.5 18.5 22 45
Voltage (V) 380/660 380/660 380/660 380/660 380/660
Rotate speed
(r/min)		 1450 970 970 970 980
Overall size:
length* width* height		 1450*512*515 1550*530*570 1955*680*815 2560*968*797 3300*1077*1034
Winch weight (including motor) 620 650 1350 2600 4460

Detailed Photos

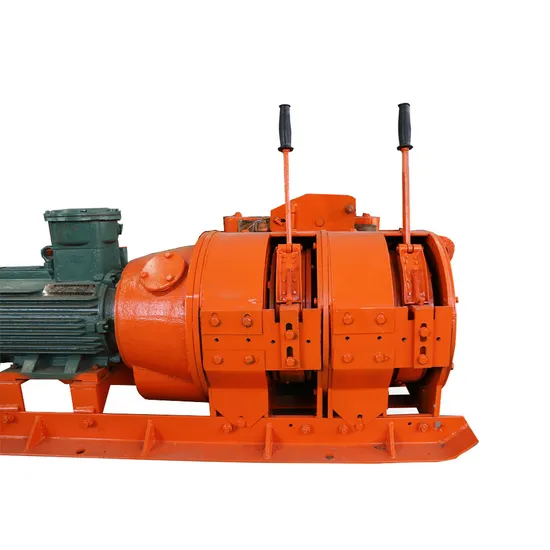

Photos of Underground Mining Industrial Explosion-Proof Rake Mine Winchs Mini Metal Ore Tunnel Electric Hoisting Electric Double Drum Scraper Lifting Hoist Winch
