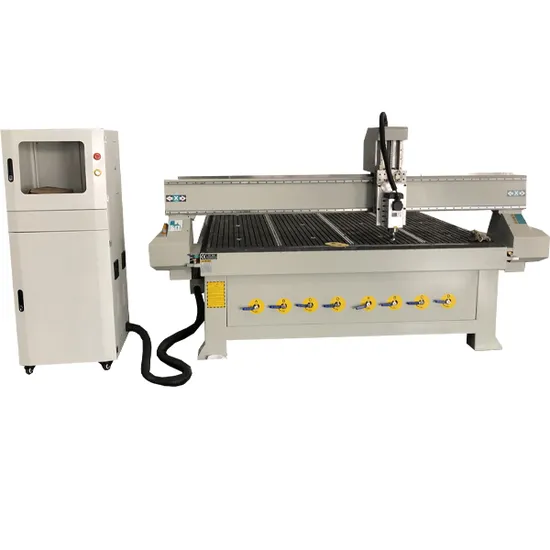

2040 Model CNC Engraving Machine for Sale

Product Description

Main configuration:
1. Welded steel bed structure
2.Taiwan HIWIN square guide rails
3.helical rack transmission for X and Y axis,
4.Taiwan TBI ball screw for Z axis
5.3.5KW air cooling spindle with BEST brand inverter
6.stepper motor and driver
7.DSP controls sytem
8.2 collects and 15 pieces cutters
9.exporting plywood package
Feature:
1 Adopt air or water cooling spindle(optional),high accuracy,big cutting power,long life span.
2 China made stepper motor, ensure working stability,high speed.
3 The lathe is founded by industrial pipe welding,box-type structure to ensure the high stability.
4 The key component parts all adopts casting tempering finish machining technology,ensure stiffness and accuracy.
5 X and Y axis adopt Taiwan HIWIN square guide rails, Z axis use Taiwan high precision ball screw,ensure the high accuracy.
6 The professional mechanical design,scientific structure and generous appearance.
7 XYZ axis use anti-dust system,prevent dust during working,make sure the long lifespan of spare parts.
8 Professional CNC control system, also provide you artcam software for free, powermill software for free.
Technical parameters of cnc router

Product Name	CNC Router for wood furniture
Model	ZK-2040
Working Area	2000*4000mm*200mm
	Also have the ability to custom-made according to user's special demand
Table material	Thicken welded steel Bed, Aluminium Alloy table
Maximum feed height	200mm
X,Y,Z Guideway rails type	Square guide rails Taiwan HIWIN, rack transmission
Max Engraving Speed	20000mm/min
Resolution ratio	0.002mm
Repetition accuracy	±0.02mm
Spindle power	3.5KW air cooling spindle or 3.2KW water cooling spindle
Spindle Rotating Speed	6000 -18,000rpm(6000-24000rpm)
Spindle cooling	Water Cooling
Drive motor system	Stepper Motor and Driver
Engraving Command	G code, u00, mmg, PLT, HPG
Command language system	English Version, Windows 98/2000/XP Operation System
Operational Software	Original Type3 Software, ArtCam software or Wentai Software
Command language system	English Version, Windows 98/2000/XP Operation System
Software Compatibility	Support CAD/CAM software, PLT format, Corel Draw, Auto CAD
Working temperature	0-45°C
Relative humidity	30% - 75%

Questions from customer:
Q1:Can you recommend a wood working machine to me,thanks?
Yes, In order to give you a suitable cnc woodworking machine,pls tell me the max working area, materials for
processing and the thickness for materials processing engraving or cutting. Then perfect suitable machine will be recommended

Q2:When the machine can't work well,What should I do?

1. Engineer is online for 24hours, they can check the problems and then give you a sulutions in two hours.
2. Our CNC machine is with one's year warranty, If any problems of machine parts under "normal use",new machine parts will be sent by air In free.
3.Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
Our advantage:
1. At the same quality grade, our products' price is better.

2. At the same products' price level, our service is better

3.5-9 days delivery,One year's warranty.

4.Response within 2 hours

5.Standard Package box

7.CE,

8.English, Russian, Spanish are all supported
Sample photos:
Package photo:

If you are interested in our machine, welcome to contact with me
