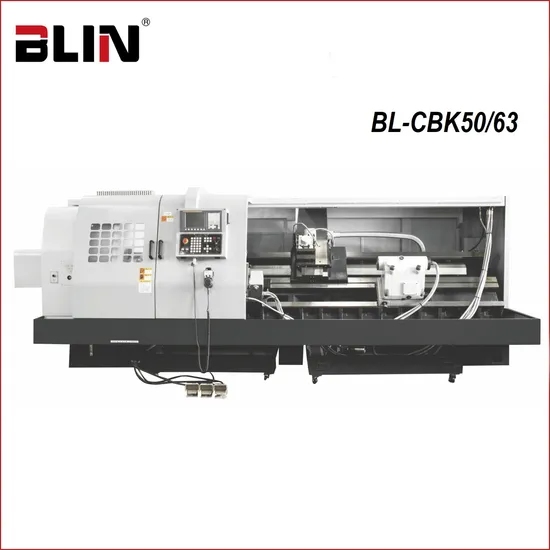

Bochi Economic CNC Lathe Machine Tool with Turret
| US$23,800.00-24,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-CBK63
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
630mm
Max. Swing Dia. Over Slide
445mm
Max. Turning Length
1000/800mm
Max. Turning Dia.
500/400mm
Spindle Bore
84mm
Spindle Type
A1-11
Spindle Speed
3 Class Gears L:20~210 M:50~525 H:155~1600
Spindle Motor Power
11kw
X/Z Axes Rapid Moving Speed
8/8 M/Min
Spindle Chuck Size
12′′
X Axes Travel
350/270mm
Z Axes Travel
1000/800mm
Positioning Accuracy(X/Z)
0.026/0.036mm
Repeat Positioning Accuracy(X/Z)
0.01/0.013mm
Tool Turret Type
Vertical 4/Horizontal 6 Station
Transport Package
Plywood Case/Steel Pallet
Specification
3100*1900*1900mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- 45°slant bed, hard box guideway
- Bed adopt China best high strength compound resin sand cast iron
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Aging treatment,has good vibration absorption and rigidity
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Spindle use high precision bearing
- Adopt 3 class gear box,suitable for heavy turning.
| Item | Specification | Unit | BL-CBK50 | BL-CBK63 |
| Capacity | Bed slant angle | ° | 45° | 45° |
| Max. swing dia. over bed | mm | Φ500 | Φ630 | |
| Max. swing dia. over saddle | mm | Φ350 | Φ445 | |
| Max. turning dia. | mm | Φ420 | Φ500(Vertical 4T tool turret); Φ400(Horizontal 8T tool turret) | |
| Max. turning length | mm | 1050(Vertical 4T tool turret); 980(Horizontal 6,8T tool turret) | 1000/2000/3000(Vertical 4T tool turret); 800/1800/2800(Horizontal 8T tool turret) | |
| Max. workpiece weight | kg | 700(10'' manual chuck) | 1200(12'' manual chuck) | |
| Spindle | Spindle bore | mm | Φ82 | Φ84 |
| Spindle type | / | A2-8 | A1-11(manual chuck);A2-8(hydraulic chuck) | |
| Spindle speed | rpm | H:162~1620 M:66~660 L:21~210 Manual 3 class gears, stepless in every class | L:20~210 M:50~525 H:155~1600 Manual 3 class gears, stepless in every class | |
| Spindle motor power | kw | 7.5 | 11 | |
| Chuck size | / | 10'' | 12'' | |
| X/Z axes | X axes travel | mm | 255 | 350(Vertical 4T tool turret); 270(Horizontal 8T tool turret) |
| Z axes travel | mm | 1000 | 1000/2000/3000(Vertical 4T tool turret); 800/1800/2800(Horizontal 8T tool turret) | |
| X axes ball screw O.D. | mm | Φ32 | Φ32 | |
| Z axes ball screw O.D. | mm | Φ40 | Φ50(1000mm)/50(2000mm)/63(3000mm) | |
| X axes ball screw pitch | mm | 5 | 5 | |
| Z axes ball screw pitch | mm | 6 | 6(1000mm)/6(2000mm)/8(3000mm) | |
| X/Z axes rapid moving speed | m/min | 6/8 | 8/8 | |
| Tool turret | Tool turret type | / | Vertical 4T/Horizontal 6,8T(opt.) | Vertical 4T/Horizontal 8T(opt.) |
| Toolshank size | mm | 25×25 | 32×32 | |
| Tailstock | Tailstock quill taper | / | MT5# | MT5# |
| Tailstock quill dia./travel | mm | Φ90/100 | Φ100/150 | |
| Others | X/Z axes positioning accuracy | mm | 0.026/0.036 | X axes≤0.026 Z axes≤0.036(1000mm);0.040(2000mm); 0.048(3000mm) |
| X/Z axes repeated positioning accuracy | mm | 0.01/0.013 | X axes≤0.007mm Z axes≤0.009(1000mm);0.014(2000mm); 0.020(3000mm) | |
| Turning workpiece roundness | mm | 0.004 | 0.004 | |
| Overall size | mm | 3120×1900×1910 | 2720/3980/5050×1800×1890 | |
| N.W. | kg | 3800 | 5000/5500/7500 |
Main parts list:
| Item | Brand |
| Spindle bearing | CHINA top-CSC/ZWZ |
| Ball screw bearing | CHINA top-CSC |
| Ball screw | CHINA top |
| Lubrication pump | JAPAN-LUBE |
Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock
Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6/8 station tool turret
- Hydraulic tailstock
- Hydraulic steady rest
