Full Automatic pig cattle horse animal chicken duck bird rabbit poultry feed pellet mill
| US$29,999.00-32,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SZLH-420
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
NO
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
NO
Expanding Method
NO
Condition
New
Applicable Materials Shape
Powder
Warranty
1 year
English Manual
Yes
Delivery Time
7-10days
Payment Term
50% T/T as Deposit, The Balance Will Be Paid After
Certificate of Origin
Yes
Diameter of ring die(
420mm
Power
110kw
Transport Package
Wooden Box
Specification
CE, SGS
Trademark
VIC
Origin
China
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
300.00cm * 120.00cm * 230.00cm
Package Gross Weight
3500.000kg
Product Description

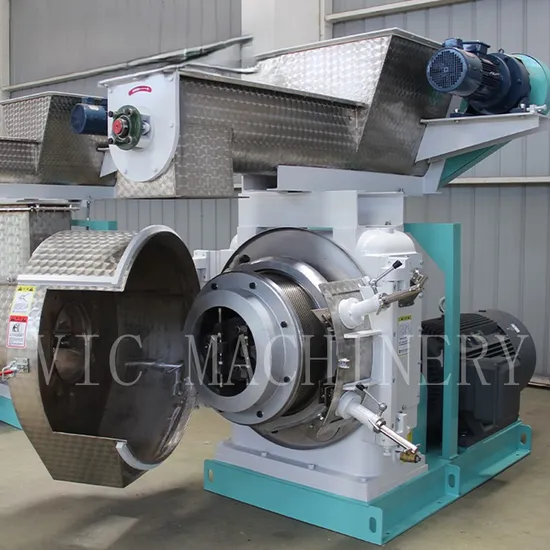

Full Automatic pig cattle horse animal chicken duck bird rabbit poultry feed pellet millProduct Description
Introduction:
This ring mould feed pellet machine is mainly used to make feedstuff pellets from all kinds of grains and grass.It also can make wood pellets from sawdust, crop stalks, rice husk, corn stalk, dry grass, peanut shell, coconut shell, bagasse and so on.
Advantage:
(1) The feed pellet machine can be equipped with Automatic Adjustment System which can control the conditioner to stable work.
(2) Main transmission is high definition gear driving, ring die is easy to discharged, be fixed by hope;
(3)The bearing and oil seal in the main driven are imported and especially lubrication oil retum system is available to ensure reliable bearing lubrication;
(4)The feeding parts adopt electromagnetic adjustable speed motor or frequency conversion adjustable speed motor. It can make the motor work under best condition;
(5)Stainless steel doors and flume; stretching cutter has tick marks, easy to adjust, all safe overload devices and caution marks are completed.
Main data:
| Model | Power(kw) | Capacity(kg/h) | |
| SZLH320 | 37 | 200-300(sawdust) | 3000(feedstuff) |
| SZLH350 | 55 | 600-800(sawdust) | 6000(feedstuff) |
| SZLH400 | 90 | 800-1000(sawdust) | 8000(feedstuff) |
| SZLH420 | 110 | 1200-1500(sawdust) | 14000(feedstuff) |
| SZLH508 | 132 | 1600-2000(sawdust) | 15000(feedstuff) |
| SZLH680 | 220 | 2100-3000(sawdust) | 25000(feedstuff) |
| SZLH780 | 250 | 3100-4000(sawdust) | 35000(feedstuff) |
More pictures and details about the feed pellet machine:
Feed pellet machines in the workshop
Other models feed pellet machine
Parts:
Final production:
Package:
Our factory:
