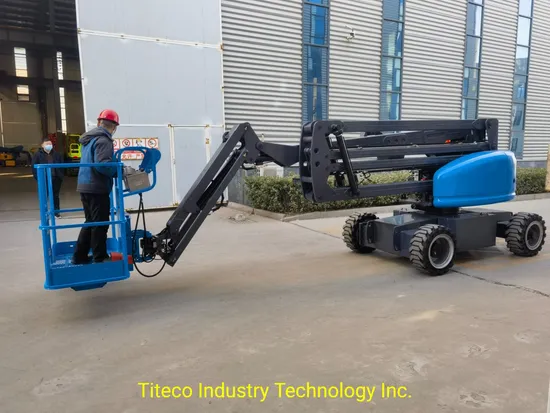

Man Lift Telescopic Folding Arm Lift Mobile Trailer Model Articulated Cherry Picker 14m 16m 18m 20m 22m Electric Lifting Equipment Self-Propelled Cherry Picker

Product Description

Model	GTZZ10D	GTZZ12D	GTZZ14D	GTZZ16D	GTZZ18D	GTZZ20D
Max. Working Height(m)	12	14	16.05	17.8	20	21.9
Max. Platform Height(m)	10	12	14.05	15.8	18	19.9
Max. Horizontal Reach(m)	5.8	8	8.1	10	10.8	12.3
Max. Up&Over Clearance(m)	4.78	5	7.6	7.6	9.2	9.2
Platform Dimension(L×W)(m)	1.1×0.65	1.1×0.65	1.53×0.76	1.53×0.76	1.53×0.76	1.53×0.76
Length(stowed)(m)	4.35	5.3	6.24	7.9	8.1	9.2
Width(stowed)(m)	1.5	2	1.75	2	2..38	2.38
Height(stowed)(m)	1.99	2.05	2	2	2.38	2.34
Wheelbase(m)	1.65	2	2	2.2	2.6	2.6
Ground Clearance(m)	0.15	0.2	0.2	0.2	0.3	0.3
Max. Lift Capacity(kg)	200	200	230	230	230	230
Max. Platform Occupancy	2	2	2	2	2	2
Platform Rotation	±80°	±80°	±80°	±80°	±80°	±80°
Vertical JIB Rotation	140°	140°	140°	140°	140°	140°
Turntable Rotation	355°	355°	355°	355°	355°	355°
Turntable Tailswing(m)	0.25	0.13	0	0	0.33	0.33
Driving Speed(stowed)(km/h)	3	3	5	5	5	5
Driving Speed(raised)(km/h)	0.8	0.8	0.8	0.8	0.8	0.8
Gradeability	25%	25%	30%	30%	25%	25%
Max. Working Slope	3°/ 3°	3°/ 3°	3°/ 3°	3°/ 3°	3°/ 3°	3°/ 3°
Turning Radius(inside)(m)	2.16	2.2	2.68	2.98	2.66	2.66
Turning Radius(outside)(m)	3.44	4.73	4.24	4.62	5.66	5.66
Drive&Steer Mode	4×2×2	4×2×2	4×2×2	4×2×2	4×2×2	4×2×2
Tire Type	0.59*×1.19	0.59×1.19	28×9×15	28×9×15	33×12×20	33×12×20
Battery	48V/320Ah	48V/320Ah	48V/420Ah	48V/420Ah	48V/420Ah	48V/420Ah
Pump Electric Motor Power(kW)	7.5	7.5	5	5	5	5
Drive Electric Motor Power(kW)	\	6.5×2	6.5×2	6.5×2	6.5×2	6.5×2
Control Voltage	24V DC	24V DC	24V DC	24V DC	24V DC	24V DC
Charger	48V/40A	48V/40A	48V/40A	48V/40A	48V/40A	48V/40A
Weight(kg)	4800	5500	6270	6270	8080	8200

INTRODUCTION
We provide all Boom Lifts include both diesel and electric driven models, with the primary feature being the highly flexible and convenient. Their articulation and rotation in particular allows this type of work platform to out-maneuver various obstacles and work at several points without the need to reposition the base.
With a wide operating range, high efficiency and large load capacity, numerous technical innovations have been incorporated into the design so that the product boasts high-level safety, reliability and operability. Both telescopic and articulated articulating Boom Lifts are widely used for plant installation and maintenance, venue construction and maintenance, construction engineering, large-scale warehousing, aviation and aerospace industry applications, airports and harbors, urban utilities and gardening, curtain wall engineering and more.
FEATURES JIB with a 90 °- 360 ° rotatable platform. The ability to drive and operate at full height Stabilization technology helps good performance Fast elevating boom at full height Unparalleled platform stabilization Smart control system make the lower energy consumption. Compact structure dimension for narrow space work. Straight boom provides greatest horizontal reach Best-in-class grade ability and reach Fastest lift and drive speeds for unmatched productivity PRODUCT DETAILS
Engine Part
4WD System & Electric Power
SHIPPING&DELIVERY
