Power Shunt Capacitor (BKMJ, BSMJ) , Dry Type, 15kvar
| US$7.60-23.40 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BKMJ
Packaging Type
Surface Mount
Capacitance
1-60kvar
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Polypropylene
Usage
Low Frequency Bypass
Tuning
Polystyrene Capacitor
kvar
1-60kvar
Items
Compensate Factor
Features
Small Size ,Low Loss
Advantage
Dry Type Non-Pollution
Types
Cylinder Type
Warranty Time
24 Months
Certificate
Ce ,ISO9001,RoHS ,IEC60831
Service
OEM &ODM
Phase
Three Phase or Single Phase
Rated Volatage
220VAC ,370VAC ,400VAC ,440VAC ,525VAC ,690VAC
Transport Package
1PCS/Box, 6 Boxes in One Carton
Specification
1-40KVAR
Trademark
BSD
Origin
China,
HS Code
85321000
Production Capacity
100000
Product Description

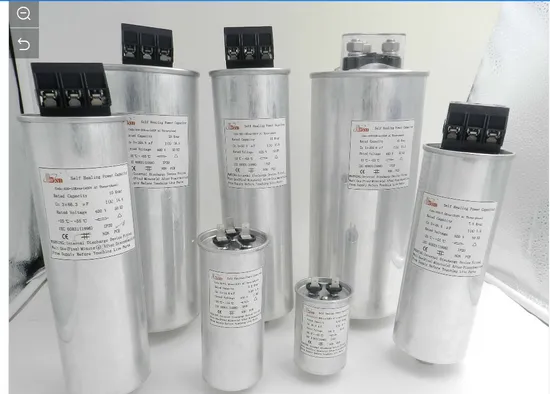

Product Description BKMJ ,BSMJ SERIES POWER CAPACITOR with UL810 ,CE ,IEC60831 ,ISO9001-2008 certificate and standard
1.Dry type power factor capacitor ,BKMJ series .three phase and single phase
2.,220-690VAC, 50/60HZ , 1-40kvar ,
3. small size and low loss ,shunt compensate factor capacitor .
4.offer OEM ,ODM service ,
5.24 months warranty time ,long life ,top quality .
6.CE, ISO9001-2008, IEC60831 standard.
| Series | Cylinder type BKMJ power capacitor |
| Rated Voltage Range | From 220-690 VAC |
| Capacitor Connection | 3 phase (1 phase on request) |
| Capacitor Frequency | 50/60 Hz. |
| Capacitor Power Range | 1- 50 KVAR |
| Dielectric | Metalized polypropylene film with self healing |
| Protection | IP 42 (IP 54 on request) |
| Discharge Resistors | Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor |
| Tolerance | ±5% |
| Maximum Ambient Temperature | -25 °C--50°C (Other temperature range on request) |
| Average temperature within 24 hours below 40°C&average | |
| temperature with a year below 30°C | |
| Max. Relative Humidity | ≤90% |
| Max. Altitude | ≤2000m (Other altitude on request |
| Over Voltage Tolerance | 1.1 UN (8 hours max. in every 24 hours) |
| 1.15 UN (30 minutes in every 24 hours) | |
| 1.2 UN (5 minutes in every 24 hours) | |
| 1.3 UN (1 minutes in every 24 hours) | |
| Over Current Tolerance | 30% permanently |
| Max. Surge Current | 200 times of rated current |
| Dielectric Loss | ≤0.2 Watt / KVAR |
