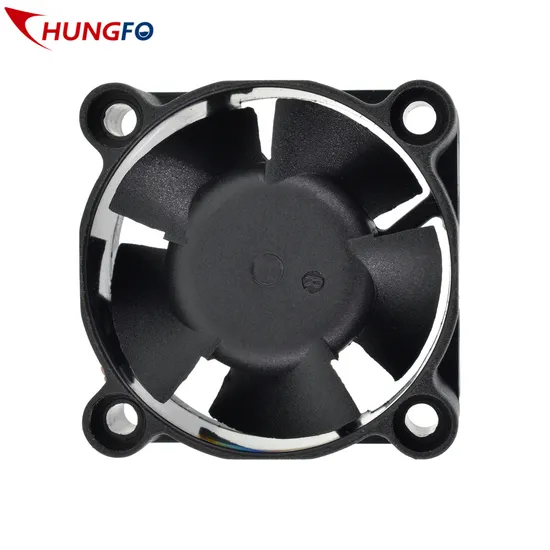

Electric Cabinet Cooling Axial DC Exhaust Fan 40X40X20mm for Ventilation
| US$0.10 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
D04020
Voltage
5V/12V/24V
Speed
5000~8000rpm/Customization
Current
0.04~0.23A/Customization
Air Flow
5.08~8.02cfm/Customization
Pressure
2.1~5.1mmaq/Customization
Noise
20~30dba/Customization
Weight
24G
Color
Black
Function
Fg/PWM
Feature
Large Air Flow, Lower Noise, Long Lifetime
Transport Package
Standard Export Carton
Specification
40x40x20mm
Trademark
CHUNGFO/HUITONG/OEM
Origin
China
HS Code
8414599050
Production Capacity
1500000PCS/Per Month
Packaging & Delivery
Package Size
4.00cm * 4.00cm * 2.00cm
Package Gross Weight
0.024kg
Product Description
DC AXIAL FAN 40x40x20mm(1.57"x1.57"x0.78")General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
| Model No. | Bearing Type | Voltage (V) | Speed Type | Speed (RPM) | Current (A) | AirFlow (CFM) | Pressure (mmAq) | Noise (dBA) | Weight (g) |
| D04020 | S/D | 5 | H | 8000 | 0.23 | 8.02 | 5.10 | 30 | 24 |
| M | 6500 | 0.14 | 6.56 | 3.70 | 26 | ||||
| L | 5000 | 0.09 | 5.08 | 2.10 | 20 | ||||
| 12 | H | 8000 | 0.12 | 8.02 | 5.10 | 30 | |||
| M | 6500 | 0.07 | 6.56 | 3.70 | 26 | ||||
| L | 5000 | 0.05 | 5.08 | 2.10 | 20 | ||||
| 24 | H | 8000 | 0.06 | 8.02 | 5.10 | 30 | |||
| M | 6500 | 0.06 | 6.56 | 3.70 | 26 | ||||
| L | 5000 | 0.04 | 5.08 | 2.10 | 20 |
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
More Models
| Type | Model | Size | Type | Model | Size |
| DC Axial Fan | D02507 | 25x25x7mm(0.98"x0.98"x0.27") | DC Axial Fan | D06025 | 60x60x25mm(2.36"x2.36"x0.98") |
| D02510 | 25x25x10mm(0.98"x0.98"x0.39") | D07015 | 70x70x15mm(2.75"x2.75"x0.59") | ||
| D03007 | 30x30x7mm(1.18"x1.18"x0.27") | D07025 | 70x70x25mm(2.75"x2.75"x0.98") | ||
| D03010 | 30x30x10mm(1.18"x1.18"x0.39") | D08010A | 80x80x10mm(3.15"x3.15"x0.39") | ||
| D03015 | 30x30x15mm(1.18"x1.18"x0.59") | D08010B | |||
| D03510 | 35x35x10mm(1.37"x1.37"x0.39") | D08015 | 80x80x15mm(3.15"x3.15"x0.59") | ||
| D04007 | 40x40x7mm(1.57"x1.57"x0.27") | D08020 | 80x80x20mm(3.15"x3.15"x0.78") | ||
| D04010A | 40x40x10mm(1.57"x1.57"x0.39") | D08025A | 80x80x25mm(3.15"x3.15"x0.98") | ||
| D04010B | D08025B | ||||
| D04010C | D08025C | ||||
| D04015 | 40x40x15mm(1.57"x1.57"x0.59") | D08038 | 80x80x38mm(3.15"x3.15"x1.5") | ||
| D04020 | 40x40x20mm(1.57"x1.57"x0.78") | D09025A | 92x92x25mm(3.62"x3.62"x0.98") | ||
| D04028 | 40x40x28mm(1.57"x1.57"x1.10") | D09025B | |||
| D05010A | 50x50x10mm(1.96"x1.96"x0.39") | D09025C | |||
| D05010B | 50x50x15mm(1.96"x1.96"x0.59") | D09232 | 92x92x32mm(3.62"x3.62"x1.26") | ||
| D05015 | 50x50x15mm(1.96"x1.96"x0.59") | D09238 | 92x92x38mm(3.62"x3.62"x1.5") | ||
| D05020 | 50x50x20mm(1.96"x1.96"x0.78") | D11335 | 113x113x35mm(4.46"x4.46"x1.38") | ||
| D05025 | 50x50x25mm(1.96"x1.96"x0.98") | D12025A | 120x120x25mm(4.72"x4.72"x0.98") | ||
| D06010 | 60x60x10mm(2.36"x2.36"x0.39") | D12025C | |||
| D06015 | 60x60x15mm(2.36"x2.36"x0.59") | D12038 | 120x120x38mm(4.72"x4.72"x1.5") | ||
| D06020 | 60x60x20mm(2.36"x2.36"x0.78") | D12539 | 125x125x39mm(4.93"x4.93"x1.54") | ||
| D06025 | 60x60x25mm(2.36"x2.36"x0.98") | D13538 | 135x135x38mm(5.31"x5.31"x1.49") |
