Basic Info.
Function
Fireproofing, Anti-static
Usage
Curtain Wall, Interior, Advertising
Width
1000mm 1220mm 1250mm 1500mm
Coating
High Performance Polyester Coating
Surface Coating
Anodized, Brushed, Foil Decoration, Mirror, PE
Product Description

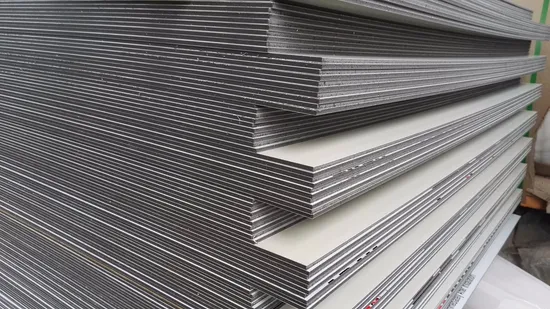

Aluminium composite panel price with acp sheet specifications
1.Thickness: 2mm, 3mm, 4mm, 5mm, 6mm (3mm and 4mm are most popular)
Length: 2,440mm (Max. length: 6000mm)
Width: 1,220mm
Thickness of aluminum foil: 0.12 - 0.5mm
Width(mm) | 1220 | 1250 | 1500 | | | | | |
Length(mm) | 2440 | Or according to customer's request | | | | | |
Panel thickness(mm) | 2 | 3 | 4 | 5 | 6 | | | |
Aluminum thickness(mm) | 0.10 | 0.12 | 0.15 | 0.18 | 0.21 | 0.3 | 0.4 | 0.5 |
Coating | PVDF | PE | Brush | Mirror | Glossy | Wood and stone texture |
2.Colors: silver, flash silver, gold, flash gold, white, red, black etc. (as requirements)
Aluminum composite panel is widely used in inner and outer wall decoration of exhibitions, restaurants, subway, offices, hotels etc. and advertising plate, sign board etc.
1) Good weather, pollutant and corrosion resistant
2) Excellent fireproof property
3) Light weight, easy to engrave, cut, bend, print, shape etc.
4) Super peeling strength and impact resistance
Package |
items | type | Mark | price |
Pallet | 2.05*3.05m | will be used if needed | $58 |
1.22*2.44m | will be used if needed | $33 |
Carton | 1.22m | will be used if needed | 3$/piece |
Plastic Wrap | | Free of Charge | free |
PE Film | | will be used if needed | 1.02$/sheet |
Wood Stick | customized | will be used if needed | according to the size |
guard netting | customized | will be used if needed | according to the size |
Goldensign International Technology Co., Ltd. is a leading manufacturer of PVC foam sheet in China .The sole company which can produce 1- 40 mm thickness PVC foam sheet/board.Now, we export goods to 60 overseas countries and regions. Goldensign has excellent technical development team, senior sales engineers, super service system and wide product range.
Today, international cooperation develops further. We hope to establish great business relationships with all clients at home or abroad to develop markets and to make a promising future.
FAQ:
Q1. What's the delivery time?
A: Within 10-15 days after received your deposit/payment.
Q2. Can i visit your factory?
It is ok, just tell me your schedule in advance, then we could arrange it for you.
Q3. Can you send samples?
yes, we would like to supply free samples, clients just pay for the freight charge, and we will reduce in the final PI.
Q4. How to keep the goods quality?
we have professional quality control and inspection workers check each board quality, including the size, thickness, surface, hadness, color, packing, etc. when load the container, we will take photos, videos, and keep the samples for the order. So for our new clients, there is no need to worry about it.
