Plough Type Dry Powder Blending Machine for Chicken Granule

Plough Type Dry Powder Blending Machine for Chicken Granule

US$1,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CMPS
Application Area
Food
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Forced
Working
Diffusion Mixer
Size
50-20000L
Construction Material
Stainless Steel or Mild Steel
Mixer Agitator Type
Plough Shear Coulter
Mixer Tank
Horizontal & Cylinder-Shaped Tank
Batch Mixing Time
5-30 Minutes
Working Model
Batch Mixing But Not Continuous
Main Shaft Rotation Speed
Low Speed or High Speed
Heavy Duty
Available
Heating Jacket
Available
Explosion-Proof
Available
Mixer Type
Horizontal Ploughshare Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE, SGS, GMP
Trademark
CMX
Origin
Shanghai
HS Code
8474
Production Capacity
500PCS/Year

Product Description

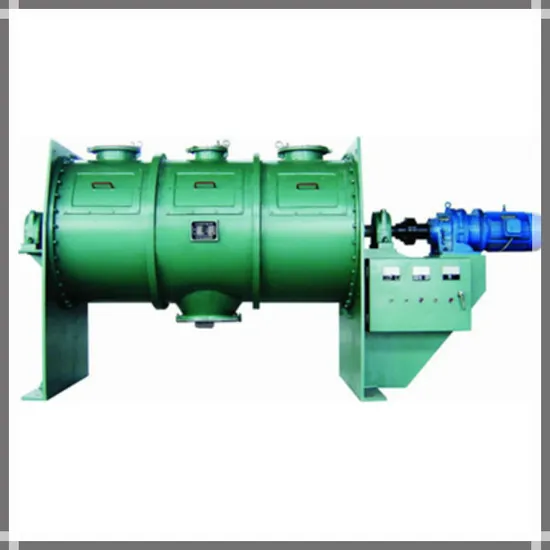

Plough type dry Powder Blending Machine for Chicken Granule
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.
1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;

1 Working principle:
CMPS series Plough Shear Coulter Mixer is comprised of horizontal cylinder-shaped trough, single shafts with plough shear agitators, high speed choppers, top cover with opening(s), support frame and transmission unit. The plough shear agitators rotate to drive materials move radilly; high speed choppers scatter the materials; so materials are mixed well by rotation of plough shear agitators and high speed choppers.
2 Performance & features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Plough agitators & choppers: quantities depend on mixer size;
2.04 Mixer tank: horizontal, cylindrical tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-30minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection & connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials, surface treatment; continuous mixing; gear box reducer; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.

4 Technical specifications:
Mixer
model
Working volume
(L)
Rotation speed
(rpm)
Motor
power
(kw)
Overall
dimension
(mm)
Machine
weight
(kg)
CMPS-50 20-30 80 1.1 1400×580×650 300
CMPS-100 40-60 80 2.2 1600×680×800 400
CMPS -300 120-180 80 4 2000×800×1100 700
CMPS -500 200-300 80 5.5 2600×1000×1200 950
CMPS -1000 400-600 80 11 3000×1250×1300 1650
CMPS -2000 800-1200 60 18.55 3600×1500×1700 2200
CMPS -3000 1200-1800 60 22 4000×1600×1800 3200
CMPS -4000 1600-2400 60 30 4500×1600×2000 4500
CMPS -5000 2000-3000 40 37 4700×1800×2100 5500
CMPS -6000 2400-3600 40 37 5000×2000×2300 6500
CMPS -8000 3200-4800 20 45 5300×2300×2500 7500
CMPS -10000 4000-6000 20 55 5900×2300×2500 9500
CMPS -12000 4800-6000 15 55 6200×2400×2600 11000
CMPS -15000 6000-9000 15 75 6400×2600×2850 12000
CMPS -20000 8000-12000 12 75 6800×2700×3100 13000

5 Mixers Album:
6 Application Industry:
7 Factory Album:
