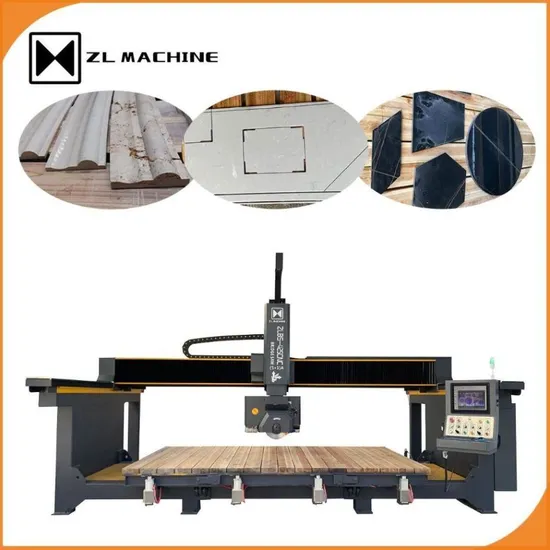

5 Axis CNC Bridge Saw Machine

Product Description

Product Description

Model	5+1 Axis CNC bridge saw
Worktable size	L3500*W2000mm
Maximum cutting	L3500*W2000*H90mm
Maximum chamfering	L3500*W2000*H60mm
Blade diameter	350-425mm
Main motor power	22 kw(permanet magnet motor with frequency)
Router power	5.5kw
Control Center	high-end CNC system+ an industrial computer
Controller brand	"Cut Cam"CNC System or "ESA system from Italy"
Driving motor	Servo motor
X,Y,Z-axis Transmission	X axis adopts Linear Guide Rail + helical rack and gear + planetary reducer. Y axis adopts Linear Guide Rail + helical rack and gear + planetary reducer + Oil-immersed structure. Z axis adopts Linear Guide Rail+ Ball screw.
C-axis	C axis adopts high-precision Reducer. It can rotate 0-360 ° to process in various directions.
A-axis	A axis adopts high-precision Reducer. It can tilt 0°~90 ° to process in various angles.
Router max speed	24000 rpm
Total power	35kw
Suction cup lifting weight	200 kgs
Cylinders	5 groups
Dimensions	L5750*W3260*H3500mm
Water consumption	2m³/h
Total weight	5.4t
Main part delivered size	5750x2200x2500mm
Machine-delivered method	Main part delivered as a whole (HQ container)

Option: (System) 1. "Cut Cam"CNC System 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber

For processing Marble, Granite, Porcelain, and Quartz Stone Countertops, we provide 5+1 Axis CNC Bridge Saw.
It is a precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image.Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate processing steps according to the Drawing. If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. For basin, Kitchen Sink, Countertop, and inner angles, the milling cutter can do excellent work with 24000rpm Electric Spindle. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.
Functions:
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals, and Maws.
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
* Thickness Measurement with Slab thickness probe
* Vein Matching

Product Features

1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With a Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.
7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
