Mountain Transporter 2t 3t 5t 8t
| US$2,000.00 | 1 Piece (MOQ) |
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Red
Transmission Type
Automatic
Power
Diesel
Load Capacity
1-10t
Emission Standard
Euro 2
Drive Wheel
4×4
Engine Capacity
＜4L
Seats
≤5
Tire Certification
ISO
Dumping Type
Front Lifting Style
Condition
New
After-Sales Service
1 Year
Warranty
1 Year
Horsepower
15 - 50HP
Tire Design
Track
Transport Package
Barely Packing
Specification
2T 3T 5T 8T
Trademark
HUANHAI
Origin
Shandong, China
HS Code
84295100
Production Capacity
20000 Units Per Year
Product Description

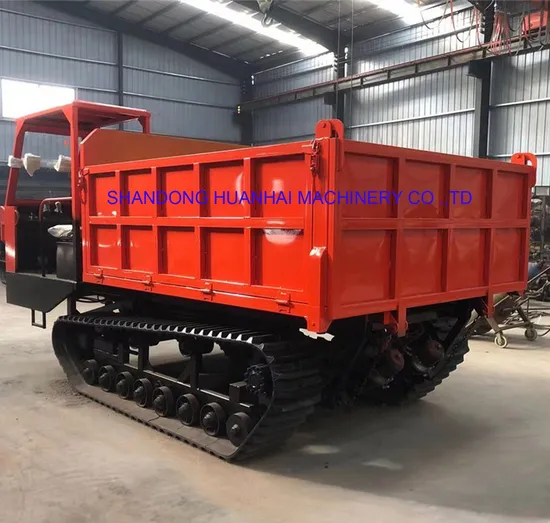

| Crawler Dumper | ||||
| 2 ton | 3 ton | 4 ton | 8 ton | |
| Total Machine Weigh | 1000KG | 1300KG | 1500KG | 2500KG |
| Engine power | 19HP Diesel engines | 30HP Diesel engines | 57HP Diesel engines | 105HP Diesel engines |
| Power | 14KW | 22KW | 42KW | 77KW |
| Diesel engine capacity | 15L | 20L | 25L | 30L |
| Hydraulic volume | 3L | 5L | 5L | 7L |
| Maximum load weight | 2000KG | 3000KG | 4000KG | 8000KG |
| Maximum grade | 30 | 30 | 30 | 30 |
| Track length | 5000mm | 5000mm | 5000mm | 5000mm |
| Track height | 575mm | 575mm | 575mm | 700mm |
| Crawler width | 280mm | 320mm | 350mm | 380mm |
| Size of the wagon | 1450*1200*500mm | 2200*1500*500mm | 2200*1500*600mm | 2500*1950*800mm |
| Machine size | 3500*1600*1850mm | 3550*1600*1850mm | 3600*1650*1850mm | 4400*2000*2300mm |
| Walking speed | 0-10km/h | 0-15km/h | 0-20km/h | 0-20km/h |
Characters of crawler dumpers:
1. Good passing ability. The crawler-type chassis adopts a crawler belt with a large grounding area. In addition, there are many patterns and spurs on the crawler belt, and the grip ability is strong. Therefore, the passing ability is greatly enhanced, and it can be in the jungle, grassland, desert, snowfield, swamp, etc. Maneuverable in a complex road environment with excellent off-road performance. Compared with the wheeled chassis, the tracked chassis can be maneuvered in a variety of complex environments, with strong passing ability and wide application range.
2. High safely and reliability. The performance of the tracked chassis is better than that of the wheeled chassis. The crawler chassis does not suffer from the situation of wheeled vehicles leaking or puncture, which affects the continuation of the work, and has better safety and reliability.
3. Strong load-bearing capacity. The driving force is large (usually the driving force of each track can reach 35%-45% of the weight of the machine), and the connecting pressure is small (40-150 kPa). Due to its inherent characteristics, such as a large grounding area, the tracked chassis can afford heavy items compared to wheeled chassis.
4. Good climbing ability. crawler-type chassis generally has a large climbing ability (generally 50%-80%, the largest can reach 100%), and the turning radius is small, the flexibility is good, and the stability is high.
