High Capacity Single Screw Twin-Screw Extruder

Product Description

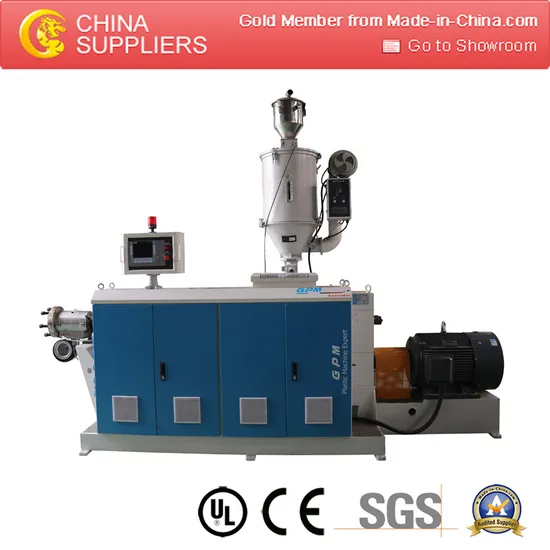

Single Screw Extruder
1. Adopt the single screw extruder, and mainly used in extruding PE, PP, ABS, PS, PC, and so on
2. The extruder using the special designed single screw making the product forming well.
3. Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.
4. Barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.
5. The reduction box adopt the Germany technical which have long life span, low noise and lower hot.
6. The control panel: AC/DC motor ,SIMENS contactor

SPECIFICATIONS FOR Single screw Extruder
Extruder model	Max.output(kg/h)	Total power(kw)
GW45/30	40-80	15/18.5
GW50/30	80-110	18.5/22
GW65/33	200-350	55/75
GW75/33	550-650	90/110
GW90/33	750-850	160
GW120/33	950-1100	280
GW150/33	1100-1200	315

twin-screw / twin screw extruder
Twin-screw extruder/conical twin-screw extruder/parallel twin-screw extruder
1)Bimetal screw and barrel, nitrided and polished, chromium plated, special treatment.
2) Parallel twin-screw feeder, powerful and high efficiency.
3) Vertical integrated gearbox, more powerful and more stable.
4) High output, can be 40-1100k/h
5) Various of models for choosing, suitable for making different products.

SPECIFICATIONS FOR Conical Twin-screw Extruder
Extruder model			Max.output (kg/h)	Total power(kw)
GSZ45/100			40-80	15/18.5
GSZ51/105			80-110	18.5/22
GSZ55/110			120-150	22/30
GSZ65/132			280-350	37/45
GSZ80/156			380-450	55/75
GSZ80/173			500-650	75
GSZ92/188			700-850	110/132
GSZ95/196			1000	132/160

Specifications for Parallel twin-screw extruder Model Motor(KW) Screw diameter(mm) Max.speed(rpm) L/D Max Capacity (kg/h) Weight (kg) GSP75/28 37 75 36 28:1 280 4100 GSP93/31 45/55 93 45 31:1 450 4700 GSP110/31 90/110 110 45 31:1 680 6500 GSP120/31 110/132 120 45 31:1 850 7500 GSP135/31 160 135 45 31:1 1100 8400

For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )

Jeremy He
