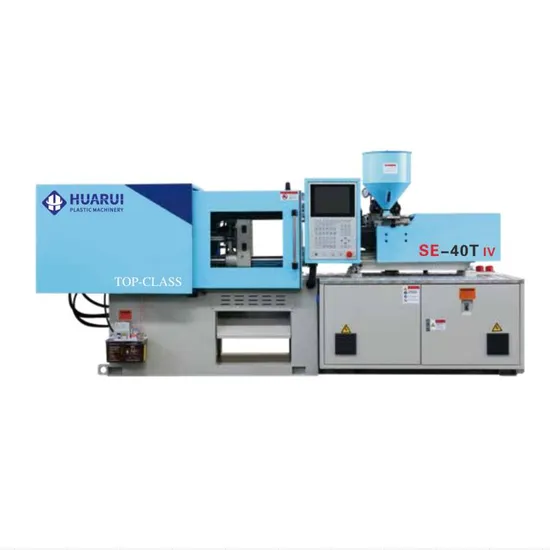

40 Ton Zipper Head Plastic Small Injection Molding Machine

40 Ton Zipper Head Plastic Small Injection Molding Machine

US$9,200.00-9,900.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-40T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
110/105cm³/Sec
Weight
1700kg
Motor Power
8.6kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
2.95*1.1*1.65m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Horizontal Hot Runner Plastic Bottle Pet Preform Injection Molding Machine
Product Parameters
SE-40T IV Plastic Injection Molding Machine Information
Item Unit A B
Screw diameter mm 27 30
Theoretical shot volume cm³ 52 64
Shot weight (PS) g 47 58
Shot weight (PS) oz 1.65 2.04
Length/Diameter ratio L/D 20.7 18.7
Injection pressure Bar 2080 1850
Injection rate cm³/sec 110 105
Max.screw speed rpm 200
Clamping force KN 400
Max.daylight mm 420*420
Open stroke mm 240
Space Between Tie-bars mm 260*240
Min mould dimension mm 100
Mould thickness range mm 300
Ejector force KN 25
Ejector stroke mm 60
No.of ejector pins unit 5
Max.motor power KW 14
System pressure MPa 175
Heater input power KW 8.6
Oil filling capacity L 100
Machine size M 2.95*1.1*1.65
Net weight KG 1700

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
