Surface Leveling Concretion Screed Concrete Floor Screed

Product Description

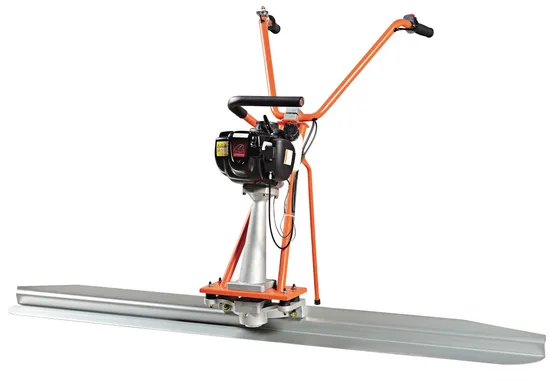

Surface Finishing Screed/hand-held screed is light and easy to handle. It's suitable for leveling slabs of all sizes and concrete from medium to high slump.
For leveling applications, It is designed to provide a consistent, even surface without any guide or supporting tube. This model offers the flexibility to choose from six lightweight, interchangeable profiles in lengths from 1.2 to 4.9 m
Surface Leveling Concretion Screed Concrete Floor Screed
Features and Advantages: Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2.Ergonomically designed and 360°adjustable handles with comfortable grips
3.Heavy rubber mounts to reduce the vibration level on the handle.
4.The rounded ends of the blade make it easy to go around obstacles.
5.The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6.One piece casting body easy connect to engine.
Specification:

Model	CSD-1	CSD-2	CSD-3
Engine Type	Chinese Petrol Engine	Robin EH035	Honda GX35
Power Kw(hp)	1.4(1.9)	1.2(1.6)	1.2(1.6)
Weight Kg(lbs)	12.7(28)	12.9(28.4)	12.9(28.4)

Blade Model	CSDB4	CSDB6	CSDB8	CSDB10	CSDB12	CSDB14	CSDB16
Blade Size m(ft)	1.2(4)	1.8(6)	2.4(8)	3.0(10)	3.7(12)	4.3(14)	4.9(16)
Weight Kg(lbs)	2.9(6.4)	4.4(9.6)	5.8(12.8)	7.3(16)	8.7(19.2)	10.2(22.4)	11.6(25.6)

Application Areas:
It is recommended to level concrete that has been vibrated with a poker. It's suitable for slabs of all sizes and concrete from medium to high slump. Common applications include floors, bridges, parking and harbors
