High Precision CNC Plate Drilling Machine for Metal Steel Drill Tapping

Product Description

Product Description

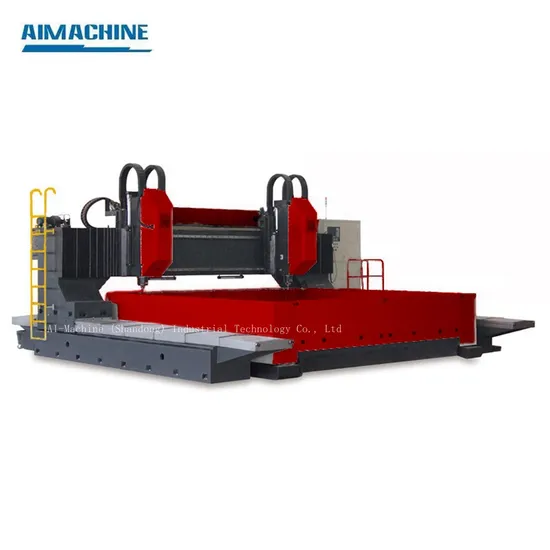

This machine is a gantry moving CNC drilling and milling machine, which can be clamped with a hard alloy high-pressure internal cooling drill bit and can also be drilled with a high-speed steel twist drill bit externally cooled. It is mainly used for drilling, tapping and milling of flanges, heat exchangers and tube sheet parts. The machining process is cnc controlled, with high efficiency, high precision, convenient programming and simple operation.
The machine is mainly composed of bed base and longitudinal sliding table, gantry and transverse sliding table, vertical feed unit and drilling and milling power head, tool magazine, automatic cutting device system, high pressure internal cooling system, external cooling system, automatic chip removal System, automatic lubrication system, pneumatic system, numerical control system, electrical system.

Product Parameters

Machine type	Gantry moving cnc drilling and milling
Maximum processing size	2000X2000mm
Maximum processing thickness	250mm
Drilling power head	CNC slide type servo control power head
Quantity of power head	1
Maximum drilling diameter	φ60mm
Maximum tapping diameter	M30
Maximum milling head diameter	φ120mm
Main motor	22KW
Main spindle rotation speed	6000r/min
Z axis stroke	800mm
Driven of X axis	Linear guide guide; AC servo motor and ball screw
Maximum speed movement in X axis	10m/min
Maximum stroke of X axis	2000mm
Motor power of X axis	2x2.3 Kw
Power head transverse (Y-axis) drive mode	Linear rolling guide; AC servo motor, ball screw drive
Maximum moving speed of Y axis	10m/min
Lubrication system	Automatic lubrication, operating pressure 2MPA, can be quantitatively adjusted regularly
Quantity of cnc axis	4 positioning axes + 1 servo spindle
Chip removal function	The height of the drill bits can be set on the operation software. When drilling to this height, the drill bit will be quickly lifted to the top of the workpiece to remove chips, and then fast-forward to the drilling surface and automatically converted to working.
Automatically converting CAD/CAM graphics into processing programs	Automatic continuous drilling can be realized simply by converting the correct CAD design drawing into a machining program.
Pulse hand wheel
Hole position memory function (power-off memory hole position) and drilling pause function.
Manual hole position jumping function	cancel the current drilling manually, and automatically carry out the drilling of the next hole position
Total power	40Kw
Machine weight	20t
Machine dimension	5800×3800×4000mm

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.

Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
